NOT Gate Using NOR Gate

An NOT logic Gate can be made using NOR logic gates. As we know, NOR is a universal logic gate, meaning it can be used to build other logic gates such as OR, AND, NOT, NAND, XOR, and XNOR. Implementing a NOT gate using a NOR gate is useful when you need an NOT logic circuit but only have NOR gates available; an NOT logic gate is unavailable.

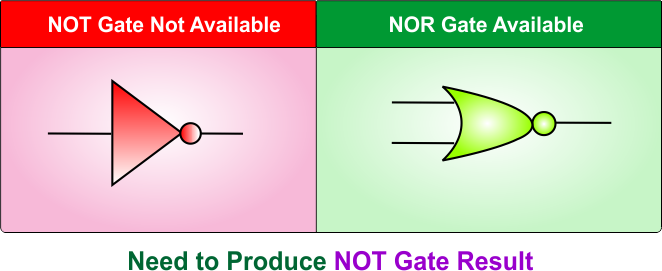

NOT Gate Using NOR Gate - Not Gate Not Available

NOT Logic Gate

NOT logic gate is also called an inverter, which takes one input and produces an output that is the reverse of the input.

  • If the input is 0, then the output will be 1
  • If the input is 1, then the output will be 0

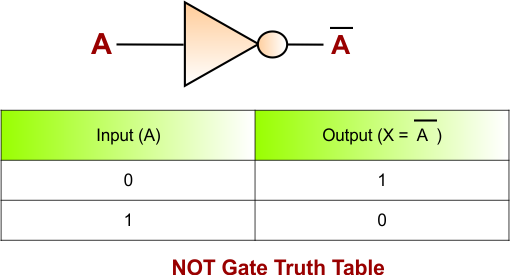

The basic NOT logic gate with its truth table is given below

NOT Gate Using NOR Gate - NOT Gate

NOR Logic Gate

The NOR gate is a fundamental logic gate to perform the NOT-OR operation. It produces a HIGH output (1) only when all inputs are LOW (0); if any input is HIGH (1), the output is LOW (0).

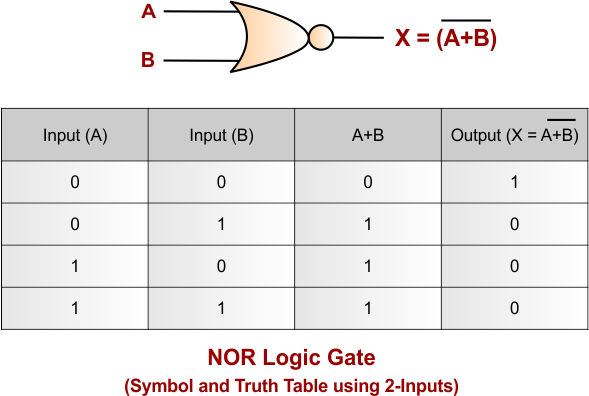

The basic NOR logic gate with its truth table is given below

NOT Gate Using NOR Gate - NOR logic gate

NOT Gate Using NOR Gate

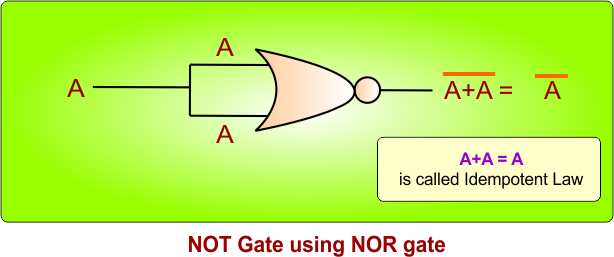

A NOT gate can be implemented using a single NOR gate by connecting the same input to both inputs of the NOR gate. Following diagram explains the process

NOT Gate Using NOR Gate
