Binary Addition
Binary addition is a fundamental arithmetic binary operation in the binary number system. It involves adding binary digits (0 and 1) to produce a binary result. Computers use binary addition to perform calculations using digital circuits.

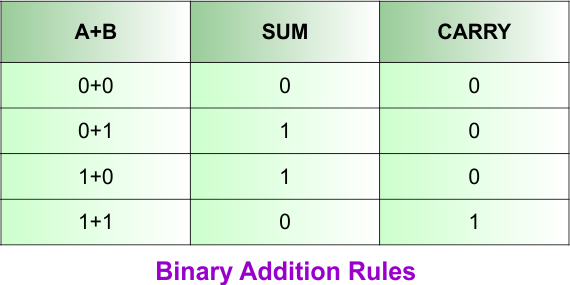

Binary Addition Rules
There are four basic binary addition rules:

Let’s explain binary addition rules
- 0 + 0 = 0: Adding two zeros gives zero.
- 0 + 1 = 1: Adding zero and one gives one.
- 1 + 0 = 1: Adding one and zero gives one.
- 1 + 1 = 10: Adding two ones gives zero with a carry of one to the next column.
Binary Addition Rules for more than 2 bits
Binary Addition Rules for more than 2 bits are given below

| Important: More than two binary numbers can be added together. However, you can also add them one by one using the basic binary addition rules. First, add two numbers, then add the next number to the result until all numbers are added. |
Binary Addition Examples

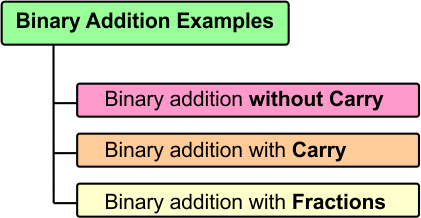

There are 3 major categories of Binary Addition

Let’s explain binary addition examples of each type
1. Binary Addition without Carry Examples
Binary addition without carry occurs when adding binary digits does not produce a carry to the next column.

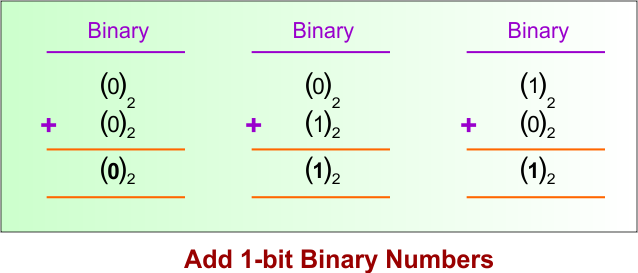

Example 1: Add 1-bit binary numbers
Binary addition of a single bit without carry is given in the following diagram

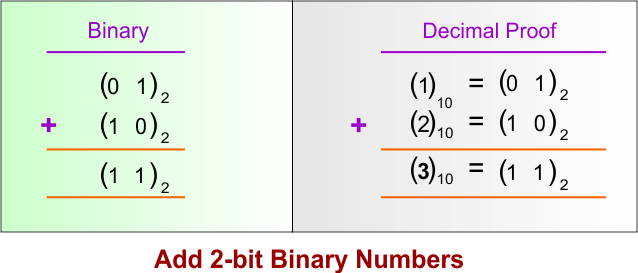

Example 2: Add 2-bit binary numbers
Binary addition of 01 + 10 with decimal proof is shown in the following diagram.

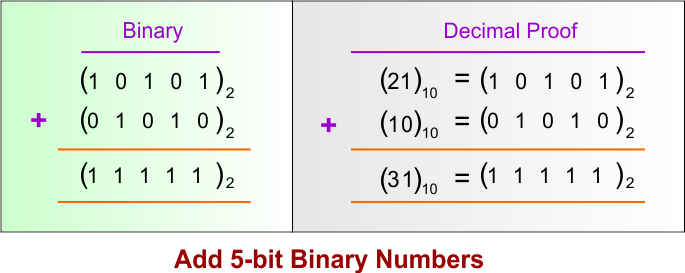

Example 3: Add 5-bit binary numbers
Binary addition of 10101 + 01010 with decimal proof is shown in the following diagram.

2. Binary Addition with Carry Examples
Binary addition with carry occurs when the sum of binary digits in a column is 2 or 3, requiring a carry to the next column.

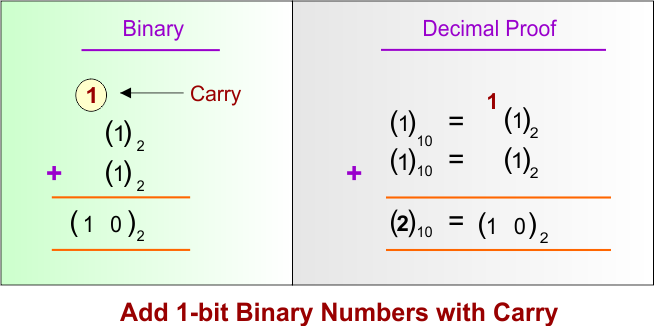

Binary Addition with Carry Example – 1
The following diagram shows the binary addition of a single bit with carry.

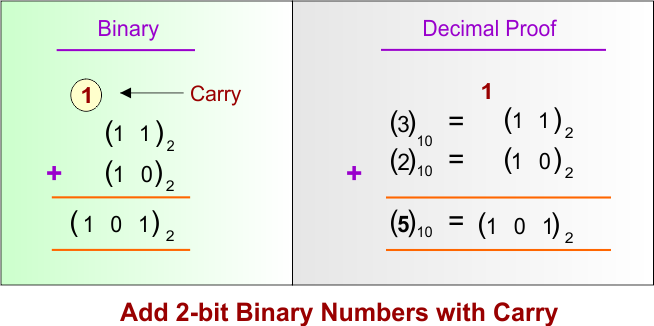

Binary Addition with Carry Example – 2
Binary addition of 11 + 10 with decimal proof is shown in the following diagram.

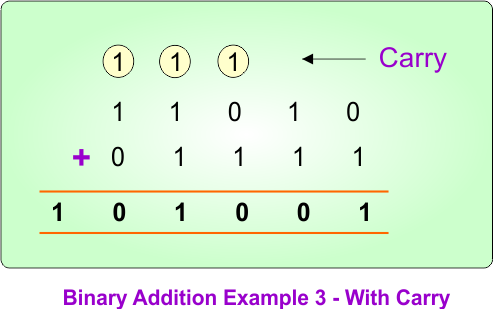

Binary Addition with Carry Example – 3
Binary addition of 11010 + 01111 is shown in the following diagram.

Binary Addition with Carry Example – 4
Binary addition of 1100 + 1110 + 0111 is shown in the following diagram.

Let’s prove the binary addition in Example 4
- Binary: 1100 + 1110 + 0111 = 100001
- Decimal: 12 + 14 + 7 = 33
- Binary Result: (100001)₂ = (33)₁₀
The binary and decimal results match, so the binary addition is correct.
Binary Addition with Carry Example – 5
Binary addition of 1100 + 1110 + 0111 + 1100 is shown in the following diagram.
Let’s prove the binary addition in Example 5
- Binary: 1100 + 1110 + 0111 + 1100 = 101101
- Decimal: 12 + 14 + 7 + 12 = 45
- Binary Result: (101101)₂ = (45)₁₀
The binary and decimal results match, so the binary addition is correct.
Binary Addition with Carry Example – 6
Binary addition of 11101 + 01110 + 01111 + 01100 is shown in the following diagram.
Let’s prove the binary addition in Example 6
- Binary: 11101 + 01110 + 01111 + 01100 = 1011100
- Decimal: 29 + 14 + 15 + 12 = 70
- Binary Result: (1000110)₂ = (70)₁₀
The binary and decimal results match, so the binary addition is correct.
Binary Addition with Carry Example – 7
Binary addition of 111101 + 111110 + 111111+ 111100 + 111101 is shown in the following diagram.
Let’s prove the binary addition in Example 7
- Binary: 111101 + 111110 + 111111 + 111100 + 111101 = 100110011
- Decimal: 61 + 62 + 63 + 60 + 61 = 307
- Binary Result: (100110011)₂ = (307)₁₀
The binary and decimal results match, so the binary addition is correct.
3. Binary Addition with Fractions
Binary addition with fractions involves adding binary numbers that contain fractional parts separated by a binary point. The binary points must be aligned before adding the numbers. Binary addition is performed from right to left, just like decimal addition.

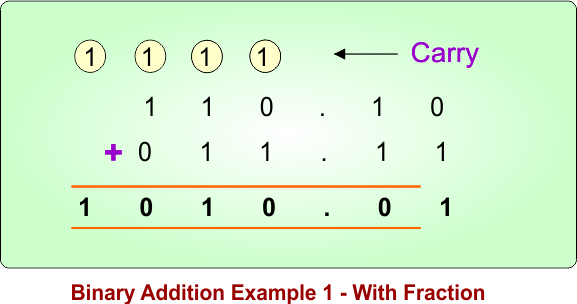

Binary addition with Fractions – Example 1
The following diagram shows the binary addition of the fraction: 110.10 + 011.11

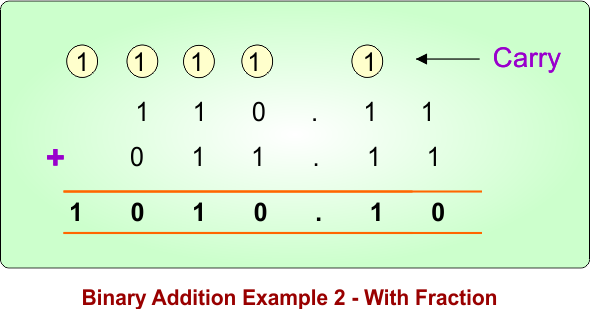

Binary addition with Fractions – Example 2
The following diagram shows the binary addition of the fraction: 110.11 + 011.11

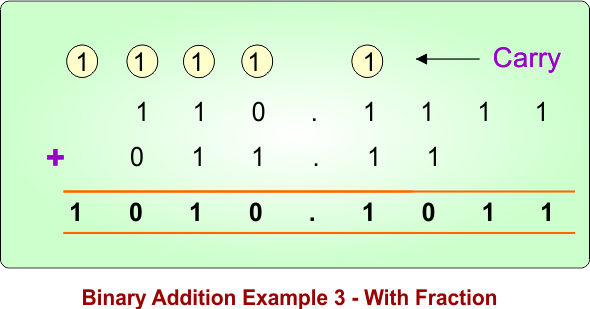

Binary addition with Fractions – Example 3
The following diagram shows the binary addition of the fraction: 110.1111 + 011.11

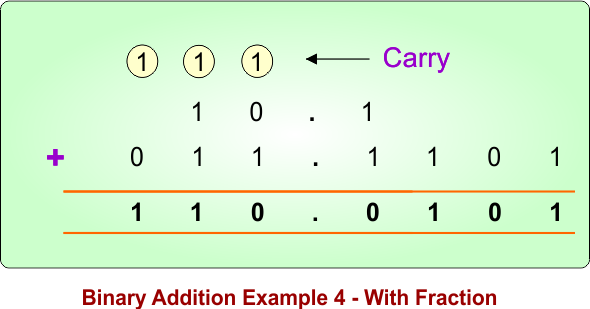

Binary addition with Fractions – Example 4
The following diagram shows the binary addition of the fractions: 10.1 + 011.1101

Binary Addition Summary Table
| Binary Addition Example | Example Type | Decimal Addition |
|---|---|---|
| 101101 + 010010 = 111111 | Without Carry | 45 + 18 = 63 |
| 1100101 + 0011010 = 1111111 | Without Carry | 101 + 26 = 127 |
| 10110110 + 01001001 = 11111111 | Without Carry | 182 + 73 = 255 |
| 101101 + 011011 = 1001000 | With Carry | 45 + 27 = 72 |
| 1101101 + 1011011 = 11001000 | With Carry | 109 + 91 = 200 |
| 10110110 + 01101101 = 100100011 | With Carry | 182 + 109 = 291 |
| 1011.101 + 110.011 = 10010.000 | Fraction | 11.625 + 6.375 = 18 |
| 1101.101 + 101.111 = 10011.100 | Fraction | 13.625 + 5.875 = 19.5 |
| 10110.1101 + 1101.1011 = 100100.1000 | Fraction | 22.8125 + 13.6875 = 36.5 |
| 110101.101 + 10111.011 = 1001101.000 | Fraction | 53.625 + 23.375 = 77 |

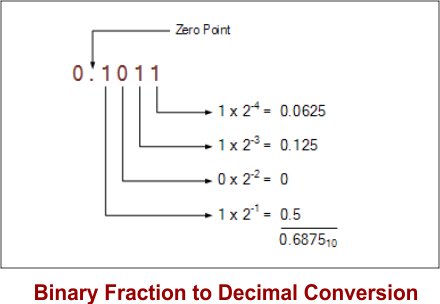

Hint: Binary Fraction to Decimal
Binary fractions use place values similar to decimal fractions, but the digits after the binary point represent negative powers of 2, such as 1/2, 1/4, 1/8, and so on. Here is a simple example of binary fraction to decimal conversion example
