Binary to Octal Conversion Examples

Binary to octal conversion is an important concept in number systems used in computer science and digital electronics. It helps in simplifying long binary numbers by converting them into a shorter base-8 representation. This is especially useful in low-level programming, memory addressing, and digital system design.

The examples of binary to octal conversion given below will help learners understand the step-by-step process with clear explanations and practical understanding.

Understanding Binary to Octal Conversion

Binary to octal conversion is a quick and efficient method because each group of 3 binary bits corresponds directly to one octal digit.

1. What is Binary Number System?

The binary number system is a base-2 number system used internally by computers.

• Base: 2
• Digits: 0 and 1
• Each position represents powers of 2

2. What is Octal Number System?

The octal number system is a base-8 number system.

• Base: 8
• Digits: 0, 1, 2, 3, 4, 5, 6, 7
• Each position represents powers of 8

3. Relationship Between Binary and Octal

Binary and octal are closely related because:

• 1 octal digit = 3 binary bits

So, binary numbers are grouped into sets of 3 bits for conversion.

Binary to Octal Conversion Methods

There are two main methods for converting binary to octal:

1. Binary to Octal Conversion using Grouping Method

In this method, binary digits are grouped into sets of 3 bits (from right to left), and each group is converted into its octal equivalent.

2. Binary to Octal Conversion using Decimal Method

In this method, the binary number is first converted into decimal, and then the decimal number is converted into octal.

Let’s explain both methods with examples

1. Binary to Octal Conversion using Standard Table

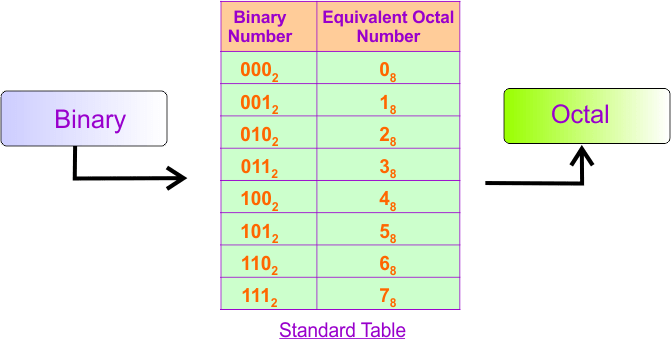

The binary to octal conversion table helps students quickly convert binary numbers into their octal equivalents by grouping bits. This method is widely used in digital systems and programming because it simplifies long binary numbers.

The list of binary groups and their octal equivalents is given below:

Steps for Binary to Octal Conversion using a Standard Table

Binary to octal conversion is a simple method based on grouping binary digits into sets of 3 bits. Each group is then converted into its octal equivalent using the standard table.

Step 1: Write the Given Binary Number

Start by writing the binary number clearly.

• Example: (101011)₂

Step 2: Group Binary Digits into Sets of 3 (from Right to Left)

Divide the binary number into groups of three digits starting from the right side.

• 101011 → 101   011

If necessary, add leading zeros to complete the leftmost group of three digits 11011 → 011   011

Step 3: Convert Each Group into Octal

Use the standard table to convert each 3-bit group into its octal equivalent.

• 101₂ = 5₈
• 011₂ = 3₈

Step 4: Combine All Octal Digits

Write all octal digits together to get the final answer.

• (101011)₂ = (53)₈

Examples are the best way to understand binary to octal conversion in a practical and exam-oriented manner. Below are solved examples with step-by-step explanations. The list of solved examples is given below:

Example 1: Convert (101101)₂ to Octal

Solution:

The following diagram shows the conversion of the binary number (101101)₂ into its equivalent octal.

Description:

By grouping the binary digits into sets of three from right to left and replacing each group with its corresponding octal equivalent using the standard table, we get the octal of (101101)₂

The octal of 101₂ is 5₈
The octal of 101₂ is 5₈

By joining all the octal digits together to form the final octal number. So, the final result is:

(101101)₂ = 55₈

Example 2: Convert (1100110)₂ to Octal

Solution:

The following diagram shows the conversion of the binary number (1100110)₂ into its equivalent octal.

Description:

Group the binary digits into sets of three from right to left:
→ 001 100 110

By replacing each group with its corresponding octal equivalent:

• The octal of 001₂ is 1₈
• The octal of 100₂ is 4₈
• The octal of 110₂ is 6₈

By joining all the octal digits together to form the final octal number. So, the final result is:

(1100110)₂ = 146₈

Example 3: Convert (1110101)₂ to Octal

Solution:

The following diagram shows the conversion of the binary number (1110101)₂ into its equivalent octal.

Description:

Group the binary digits into sets of three from right to left:
→ 001 110 101

By replacing each group with its corresponding octal equivalent:

• The octal of 001₂ is 1₈
• The octal of 110₂ is 6₈
• The octal of 101₂ is 5₈

By joining all the octal digits together to form the final octal number. So, the final result is:

(1110101)₂ = 165₈

Example 4: Convert (10011101)₂ to Octal

Solution:

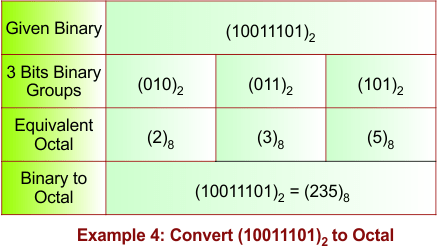

The following diagram shows the conversion of the binary number (10011101)₂ into its equivalent octal.

Description:

Group the binary digits into sets of three from right to left:
→ 010 011 101

By replacing each group with its corresponding octal equivalent:

• The octal of 010₂ is 2₈
• The octal of 011₂ is 3₈
• The octal of 101₂ is 5₈

By joining all the octal digits together to form the final octal number. So, the final result is:

(10011101)₂ = 235₈

Example 5: Convert (101011110)₂ to Octal

Solution:

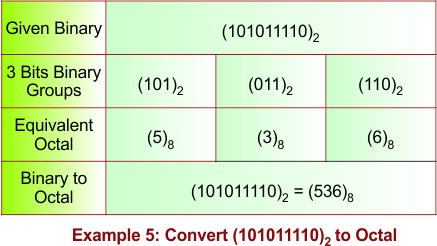

The following diagram shows the conversion of the binary number (101011110)₂ into its equivalent octal.

Description:

Group the binary digits into sets of three from right to left:
→ 101 011 110

By replacing each group with its corresponding octal equivalent:

• The octal of 101₂ is 5₈
• The octal of 011₂ is 3₈
• The octal of 110₂ is 6₈

By joining all the octal digits together to form the final octal number. So, the final result is:

(101011110)₂ = 536₈

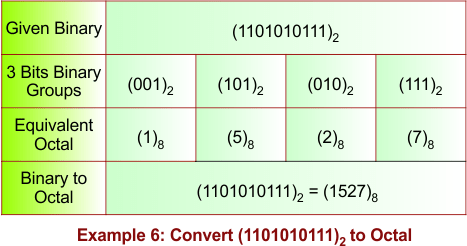

Example 6: Convert (1101010111)₂ to Octal

Solution:

The following diagram shows the conversion of the binary number (1101010111)₂ into its equivalent octal.

Description:

Group the binary digits into sets of three from right to left:
→ 001 101 010 111

By replacing each group with its corresponding octal equivalent:

• The octal of 001₂ is 1₈
• The octal of 101₂ is 5₈
• The octal of 010₂ is 2₈
• The octal of 111₂ is 7₈

By joining all the octal digits together to form the final octal number. So, the final result is:

(1101010111)₂ = 1527₈

Example 7: Convert (101110011010)₂ to Octal

Solution:

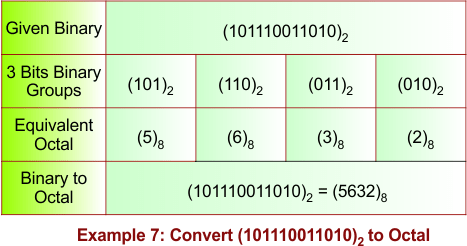

The following diagram shows the conversion of the binary number (101110011010)₂ into its equivalent octal.

Description:

Group the binary digits into sets of three from right to left:
→ 101 110 011 010

By replacing each group with its corresponding octal equivalent:

• The octal of 101₂ is 5₈
• The octal of 110₂ is 6₈
• The octal of 011₂ is 3₈
• The octal of 010₂ is 2₈

By joining all the octal digits together to form the final octal number. So, the final result is:

(101110011010)₂ = 5632₈

Example 8: Convert (110101110011)₂ to Octal

Solution:

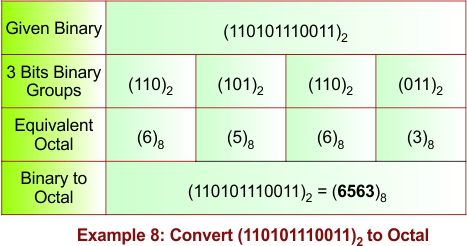

The following diagram shows the conversion of the binary number (110101110011)₂ into its equivalent octal.

Description:

Group the binary digits into sets of three from right to left:
→ 110 101 110 011

By replacing each group with its corresponding octal equivalent:

• The octal of 110₂ is 6₈
• The octal of 101₂ is 5₈
• The octal of 110₂ is 6₈
• The octal of 011₂ is 3₈

By joining all the octal digits together to form the final octal number. So, the final result is:

(110101110011)₂ = 6563₈

Example 9: Convert (111001010111)₂ to Octal

Solution:

The following diagram shows the conversion of the binary number (111001010111)₂ into its equivalent octal.

Description:

Group the binary digits into sets of three from right to left:
→ 111 001 010 111

By replacing each group with its corresponding octal equivalent:

• The octal of 111₂ is 7₈
• The octal of 001₂ is 1₈
• The octal of 010₂ is 2₈
• The octal of 111₂ is 7₈

By joining all the octal digits together to form the final octal number. So, the final result is:

(111001010111)₂ = 7127₈

Example 10: Convert (1001101110010)₂ to Octal

Solution:

The following diagram shows the conversion of the binary number (1001101110010)₂ into its equivalent octal.

Description:

Group the binary digits into sets of three from right to left:
→ 001 001 101 110 010

By replacing each group with its corresponding octal equivalent:

• The octal of 001₂ is 1₈
• The octal of 001₂ is 1₈
• The octal of 101₂ is 5₈
• The octal of 110₂ is 6₈
• The octal of 010₂ is 2₈

By joining all the octal digits together to form the final octal number. So, the final result is:

(1001101110010)₂ = 11562₈

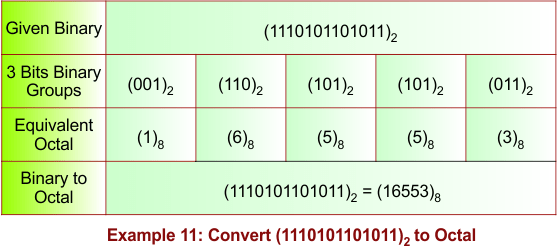

Example 11: Convert (1110101101011)₂ to Octal

Solution:

The following diagram shows the conversion of the binary number (1110101101011)₂ into its equivalent octal.

Description:

Group the binary digits into sets of three from right to left:
→ 001 110 101 101 011

By replacing each group with its corresponding octal equivalent:

• The octal of 001₂ is 1₈
• The octal of 110₂ is 6₈
• The octal of 101₂ is 5₈
• The octal of 101₂ is 5₈
• The octal of 011₂ is 3₈

By joining all the octal digits together to form the final octal number. So, the final result is:

(1110101101011)₂ = 16553₈

Example 12: Convert (10101100111010)₂ to Octal

Solution:

The following diagram shows the conversion of the binary number (10101100111010)₂ into its equivalent octal.

Description:

Group the binary digits into sets of three from right to left:
→ 010 101 100 111 010

By replacing each group with its corresponding octal equivalent:

• The octal of 010₂ is 2₈
• The octal of 101₂ is 5₈
• The octal of 100₂ is 4₈
• The octal of 111₂ is 7₈
• The octal of 010₂ is 2₈

By joining all the octal digits together to form the final octal number. So, the final result is:

(10101100111010)₂ = 25472₈

Example 13: Convert (11011010101101)₂ to Octal

Solution:

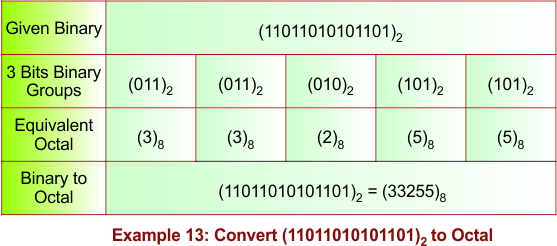

The following diagram shows the conversion of the binary number (11011010101101)₂ into its equivalent octal.

Description:

Group the binary digits into sets of three from right to left:
→ 011 011 010 101 101

By replacing each group with its corresponding octal equivalent:

• The octal of 011₂ is 3₈
• The octal of 011₂ is 3₈
• The octal of 010₂ is 2₈
• The octal of 101₂ is 5₈
• The octal of 101₂ is 5₈

By joining all the octal digits together to form the final octal number. So, the final result is:

(11011010101101)₂ = 33255₈

Example 14: Convert (111001011010111)₂ to Octal

Solution:

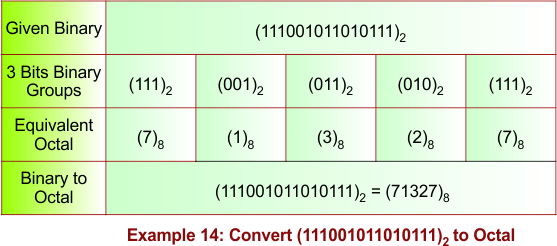

The following diagram shows the conversion of the binary number (111001011010111)₂ into its equivalent octal.

Description:

Group the binary digits into sets of three from right to left:
→ 111 001 011 010 111

By replacing each group with its corresponding octal equivalent:

• The octal of 111₂ is 7₈
• The octal of 001₂ is 1₈
• The octal of 011₂ is 3₈
• The octal of 010₂ is 2₈
• The octal of 111₂ is 7₈

By joining all the octal digits together to form the final octal number. So, the final result is:

(111001011010111)₂ = 71327₈

Example 15: Convert (1001011101010111)₂ to Octal

Solution:

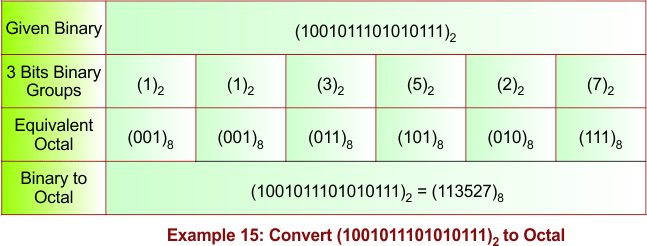

The following diagram shows the conversion of the binary number (1001011101010111)₂ into its equivalent octal.

Description:

Group the binary digits into sets of three from right to left:
→ 001 001 011 101 010 111

By replacing each group with its corresponding octal equivalent:

• The octal of 001₂ is 1₈
• The octal of 001₂ is 1₈
• The octal of 011₂ is 3₈
• The octal of 101₂ is 5₈
• The octal of 010₂ is 2₈
• The octal of 111₂ is 7₈

By joining all the octal digits together to form the final octal number. So, the final result is:

(1001011101010111)₂ = 113527₈

Example 16: Convert (1110101011100110)₂ to Octal

Solution:

The following diagram shows the conversion of the binary number (1110101011100110)₂ into its equivalent octal.

Description:

Group the binary digits into sets of three from right to left:
→ 001 110 101 011 100 110

By replacing each group with its corresponding octal equivalent:

• The octal of 001₂ is 1₈
• The octal of 110₂ is 6₈
• The octal of 101₂ is 5₈
• The octal of 011₂ is 3₈
• The octal of 100₂ is 4₈
• The octal of 110₂ is 6₈

By joining all the octal digits together to form the final octal number. So, the final result is:

(1110101011100110)₂ = 165346₈

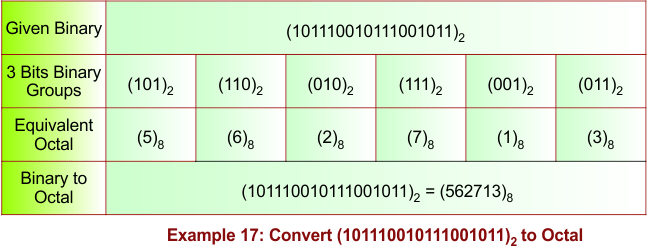

Example 17: Convert (101110010111001011)₂ to Octal

Solution:

The following diagram shows the conversion of the binary number (101110010111001011)₂ into its equivalent octal.

Description:

Group the binary digits into sets of three from right to left:
→ 101 110 010 111 001 011

By replacing each group with its corresponding octal equivalent:

• The octal of 101₂ is 5₈
• The octal of 110₂ is 6₈
• The octal of 010₂ is 2₈
• The octal of 111₂ is 7₈
• The octal of 001₂ is 1₈
• The octal of 011₂ is 3₈

By joining all the octal digits together to form the final octal number. So, the final result is:

(101110010111001011)₂ = 562713₈

Example 18: Convert (110101011100101110)₂ to Octal

Solution:

The following diagram shows the conversion of the binary number (110101011100101110)₂ into its equivalent octal.

Description:

Group the binary digits into sets of three from right to left:
→ 110 101 011 100 101 110

By replacing each group with its corresponding octal equivalent:

• The octal of 110₂ is 6₈
• The octal of 101₂ is 5₈
• The octal of 011₂ is 3₈
• The octal of 100₂ is 4₈
• The octal of 101₂ is 5₈
• The octal of 110₂ is 6₈

By joining all the octal digits together to form the final octal number. So, the final result is:

(110101011100101110)₂ = 653456₈

Example 19: Convert (1110011010101110011)₂ to Octal

Solution:

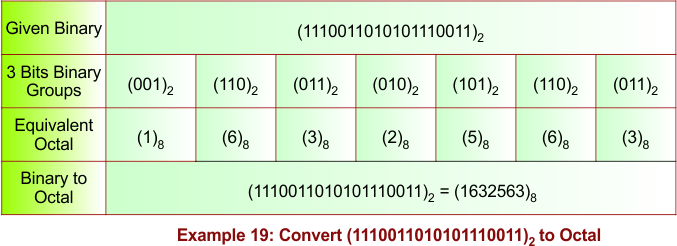

The following diagram shows the conversion of the binary number (1110011010101110011)₂ into its equivalent octal.

Description:

Group the binary digits into sets of three from right to left:
→ 001 110 011 010 101 110 011

By replacing each group with its corresponding octal equivalent:

• The octal of 001₂ is 1₈
• The octal of 110₂ is 6₈
• The octal of 011₂ is 3₈
• The octal of 010₂ is 2₈
• The octal of 101₂ is 5₈
• The octal of 110₂ is 6₈
• The octal of 011₂ is 3₈

By joining all the octal digits together to form the final octal number. So, the final result is:

(1110011010101110011)₂ = 1632563₈

Example 20: Convert (101011110010111010010)₂ to Octal

Solution:

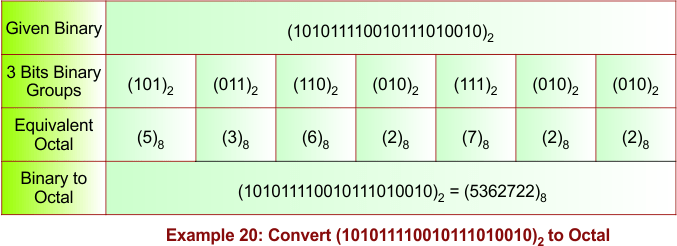

The following diagram shows the conversion of the binary number (101011110010111010010)₂ into its equivalent octal.

Description:

Group the binary digits into sets of three from right to left:
→ 101 011 110 010 111 010 010

By replacing each group with its corresponding octal equivalent:

• The octal of 101₂ is 5₈
• The octal of 011₂ is 3₈
• The octal of 110₂ is 6₈
• The octal of 010₂ is 2₈
• The octal of 111₂ is 7₈
• The octal of 010₂ is 2₈
• The octal of 010₂ is 2₈

By joining all the octal digits together to form the final octal number. So, the final result is:

(101011110010111010010)₂ = 5362722₈

2. Binary to Octal Conversion (Using Decimal Number System)

This method has two main Steps:

Step 1: Convert Binary to Decimal

• Write the given binary number
• Start from the rightmost digit
• Multiply each digit by powers of 2:
• Rightmost digit → × 2⁰
  • Next digit → × 2¹
  • Next → × 2² and so on
  • Add all the results
• The sum is your decimal number

For Fractional Part (if present)

Digits after the decimal use negative powers of 2:

• First digit → × 2⁻¹
• Next digit → × 2⁻²
• Next → × 2⁻³

Step 2: Convert Decimal to Octal

• Take the decimal number
• Divide it by 8
• Write down the remainder
• Repeat division until the quotient becomes 0
• Write remainders in reverse order

This gives the octal result

Fractional Part (if present)

For decimal fractions, use the multiplication by 8 method to convert it into octal

• Take the fractional part
• Multiply it by 8
• Write down the integer part (0–7)
• Keep the fractional part only
• Repeat until Fraction becomes 0 or Required accuracy is reached

Write the collected digits in the same order

Example 01: Convert (101010.0011)₂ to Octal

Step 1: Convert Binary to Decimal

Integer Part (101010)₂ Conversion

(101010)₂ = 1 × 2⁵ + 0 × 2⁴ + 1 × 2³ + 0 × 2² + 1 × 2¹ + 0 × 2⁰
(101010)₂ = 32 + 0 + 8 + 0 + 2 + 0
(101010)₂ = (42)₁₀

Fractional Part (.0011)₂ Conversion

(0.0011)₂ = 0 × 2⁻¹ + 0 × 2⁻² + 1 × 2⁻³ + 1 × 2⁻⁴
(0.0011)₂ = 0 + 0 + 1/8 + 1/16
(0.0011)₂ = (0.1875)₁₀

Combine the integer and the fractional Part

(101010)₂ + (0.0011)₂ = (42)₁₀ + (0.1875)₁₀
(101010.0011)₂ = (42.1875)₁₀

Step 2: Convert Decimal to Octal

Integer Part (42)₁₀ Conversion

42 ÷ 8 = 5 remainder 2
5 ÷ 8 = 0 remainder 5

(42)₁₀ = (52)₈

Fractional Part (0.1875)₁₀ Conversion

0.1875 × 8 = 1.5 → 1
0.5 × 8 = 4.0 → 4

(0.1875)₁₀ = (.14)₈

Combine the integer and the fractional Part

(42.1875)₁₀ = (52.14)₈

Final Answer

Hence, the given binary (101010.0011)₂ is converted to octal (52.14)₈. So we can write

(101010.0011)₂ = (42.1875)₁₀ = (52.14)₈
