Digital Modulation

Digital Modulationis the process of encoding digital data onto an analog carrier signal for transmission over communication channels like radio waves, telephone lines, or optical fibers.

Important: Binary data can be transmitted over a sine wave using digital modulation techniques.

Digital Modulation Working

1. Digital Data Input: Start with a stream of binary data, like 1011001.

2. Carrier Signal: An analog sine wave is generated (called a carrier), which has a fixed frequency, amplitude, and phase.

3. Modulation Process: Based on the bit values, the properties of the carrier signal are altered:

  • In ASK, change the amplitude (high for ‘1’, low or zero for ‘0’).

  • In FSK, change the frequency (e.g., 1 kHz for ‘0’, 2 kHz for ‘1’).

  • In PSK, change the phase (e.g., 0° for ‘0’, 180° for ‘1’).

  • In QAM, vary both amplitude and phase to represent multiple bits per symbol.

4. Transmission: The modulated analog signal is sent over the physical medium (e.g., radio wave, coaxial cable).

5. Reception & Demodulation: At the receiver, the signal undergoes demodulation to retrieve the digital data. The receiver identifies changes in amplitude, frequency, or phase to reconstruct the original bits.

Why is digital modulation significant?

  • Efficient Utilization of Bandwidth
  • Enhanced Signal Quality
  • Resistance to Noise
  • Secure Communication
  • Compatibility with Digital Systems

Types of Digital Modulation Techniques

Here are the most widely used digital modulation techniques are

1. Amplitude Shift Keying (ASK)

ASK modulates the carrier wave’s amplitude. A binary ‘1’ is represented by high amplitude, while a binary ‘0’ corresponds to lower or zero amplitude.

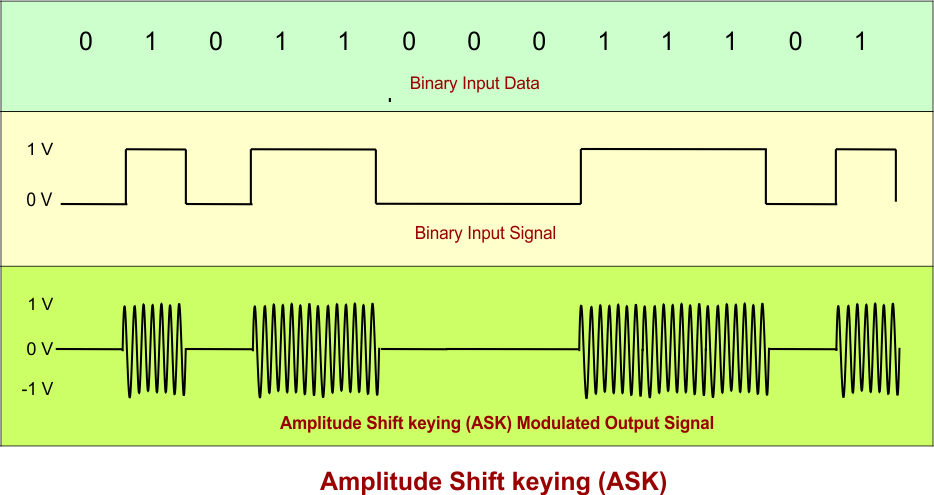

Digital Modulation Techniques - Amplitude Shift keying (ASK)

  • Advantages: Simple to implement
  • Disadvantages: Susceptible to noise
  • Applications: Optical fiber communication, RFID systems

2. Frequency Shift Keying (FSK)

Frequency Shift Keying (FSK) changes the carrier signal’s frequency. Different frequencies represent each binary value.

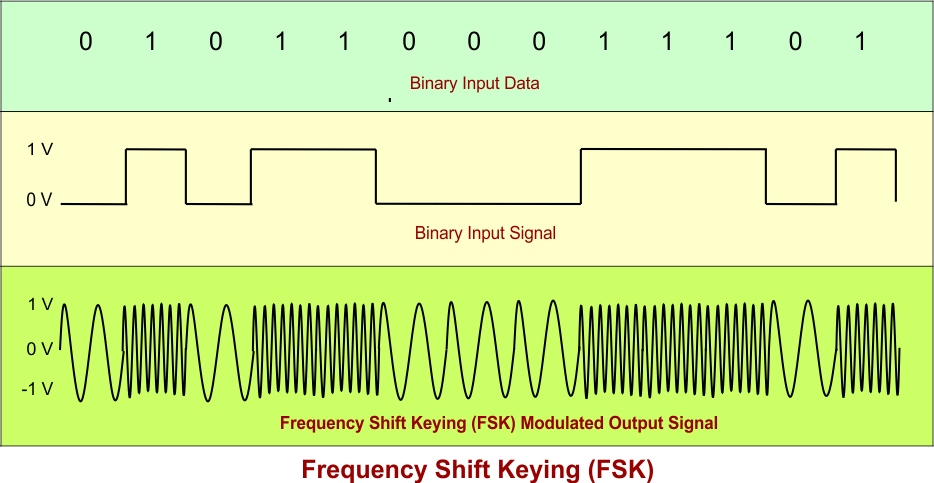

Digital Modulation Techniques - Frequency Shift Keying (FSK)

  • Advantages: Better noise immunity than ASK
  • Disadvantages: Requires a wider bandwidth
  • Applications include old modems (such as 300 baud), walkie-talkies, radio frequency identification (RFID), and certain satellite and telemetry systems.

3. Phase Shift Keying (PSK)

PSK changes the phase of the carrier wave to represent binary data.

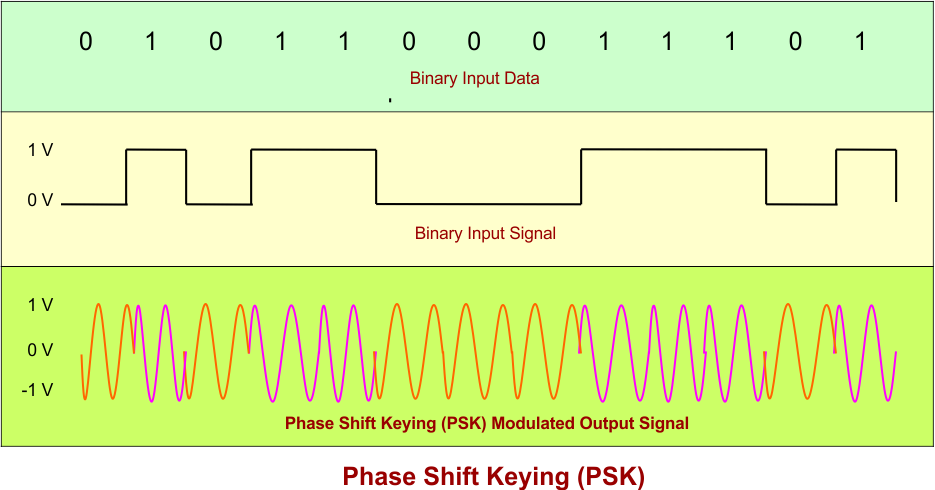

Digital Modulation Techniques - Phase Shift Keying (PSK)

Common types of PSK are given below

i.Binary Phase Shift Keying (BPSK)

  • Uses two phases, 0° and 180°
  • Most robust PSK variant

ii. Quadrature Phase Shift Keying (QPSK)

  • Uses four phase angles (0°, 90°, 180°, 270°)
  • Doubles the data rate compared to BPSK

iii. 8-PSK, 16-PSK

  • More bits per symbol, but less noise-tolerant

  • Applications: Wi-Fi, satellite communication, Bluetooth

4) M-Ary Digital Modulation

M-ary digital modulation techniques are advanced methods that enable the transmission of multiple bits per symbol by utilizing more than two signal states. Common types include

  • M-ary Amplitude Shift Keying (M-ASK)
  • M-ary Frequency Shift Keying (M-FSK)
  • M-ary Phase Shift Keying (M-PSK)
  • Quadrature Amplitude Modulation (M-QAM).

Each method varies the carrier signal’s amplitude, frequency, phase, or a combination of these to represent multiple bits. For instance, Quadrature PSK (QPSK) uses four phase shifts to represent 2 bits per symbol, while 16-QAM employs 16 different combinations of amplitude and phase to represent 4 bits per symbol.

The need for M-ary modulation arises from the increasing demand for higher data rates and more efficient use of bandwidth in modern communication systems. By encoding multiple bits per symbol, M-ary modulation significantly enhances transmission speed without requiring additional bandwidth. This makes it particularly suitable for applications like 4G/5G mobile networks, satellite communication, digital television, and Wi-Fi, where spectrum is limited and speed is crucial. Although higher-order M-ary schemes tend to be more complex and sensitive to noise, their efficiency is essential for today’s high-capacity digital systems.

Advanced Digital Modulation Techniques

  • Minimum Shift Keying (MSK): A type of FSK with minimal frequency shift, leading to less interference.
  • Orthogonal Frequency Division Multiplexing (OFDM): Splits the signal into multiple narrowband channels for high data rates.

Comparison Table: Digital Modulation Techniques

Technique Parameter Modified Bandwidth Efficiency Noise Immunity Complexity
ASK Amplitude Low Low Low
FSK Frequency Medium Medium Medium
PSK Phase High High High
QAM Amplitude + Phase Very High Medium-High High

Applications of Digital Modulation

  • Mobile Communications (4G/5G)
  • Wi-Fi and WLAN
  • Digital Television and Radio
  • Satellite and GPS Systems
  • Modems and DSL Internet
