Difference Between Mealy and Moore Machine

Both Mealy and Moore Machines accept the regular languages and provide the output. Before proceeding to the key difference between Mealy and Moore Machine, Let’s look at an example of the Mealy and Moore machines which helps us to understand all the key differences in the Mealy and Mealy machine

Moore Machine Example: The following is a Moore Machine which gives the first compliment of binary digit.

Example of Automata Moore Machine to find first complement

Mealy Machine Example:  The following is a Mealy Machine which gives the first compliment of binary digit.

Examples of Mealy Machine to find first complement

Key Difference Between Mealy and Moore Machine

Let’s explain all the major key differences between Mealy and Moore’s machine according to the above given diagram. A detailed description is given below

1. Transition Labels

Moving from one state to another state using an arrow is called a transition, and the value attached to the arrow is called a transition label.

  • In a Mealy Machine, the transition label contains the input with the output represented as input/output (i.e., 1/a) or input, output (i.e., 1, a).
  • In Moore Machine, the transition label contains only the input.  Output remains inside the states instead of over the transition.

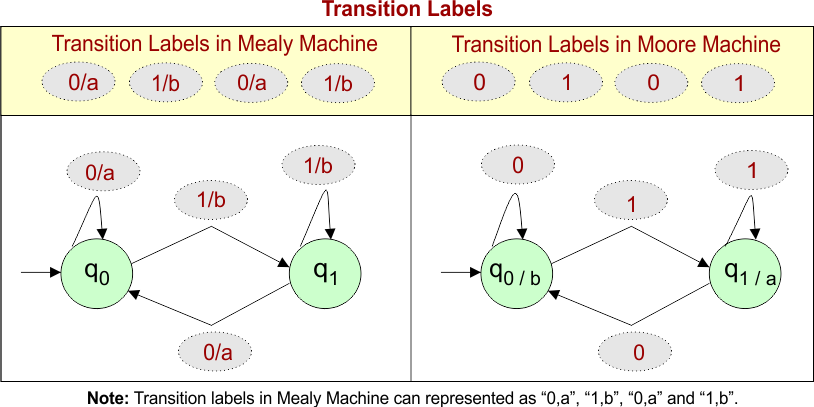

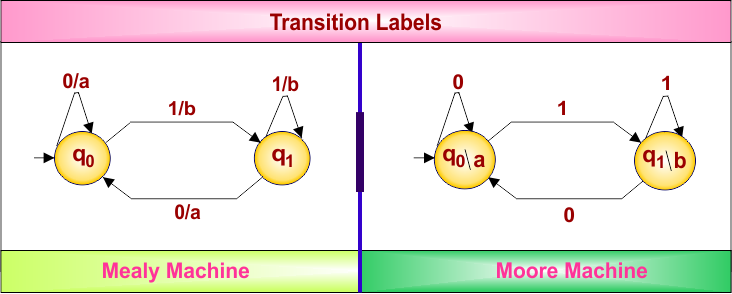

The discriptive diagram above transition labels is given below

Difference Between Mealy and Moore Machine - Transition Labels

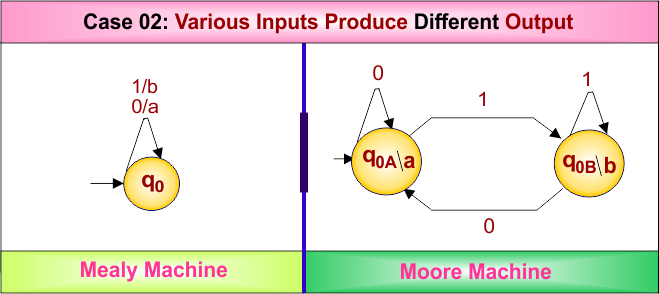

2. Single State Behaviour

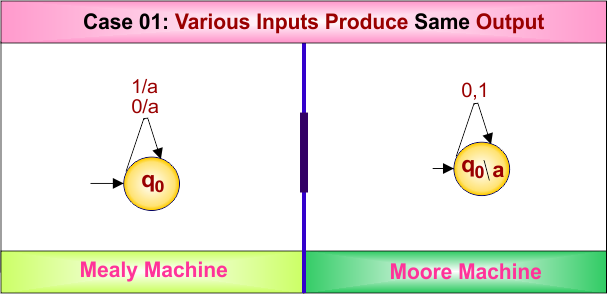

Single-state behaviour is different in Moore and Mealy machine.



  • In a Mealy machine, A single state can generate any outputs (i.e., A, B, C, D, etc) against any inputs.
  • In the Moore machine, A single state can generate only a fixed single output for all inputs.

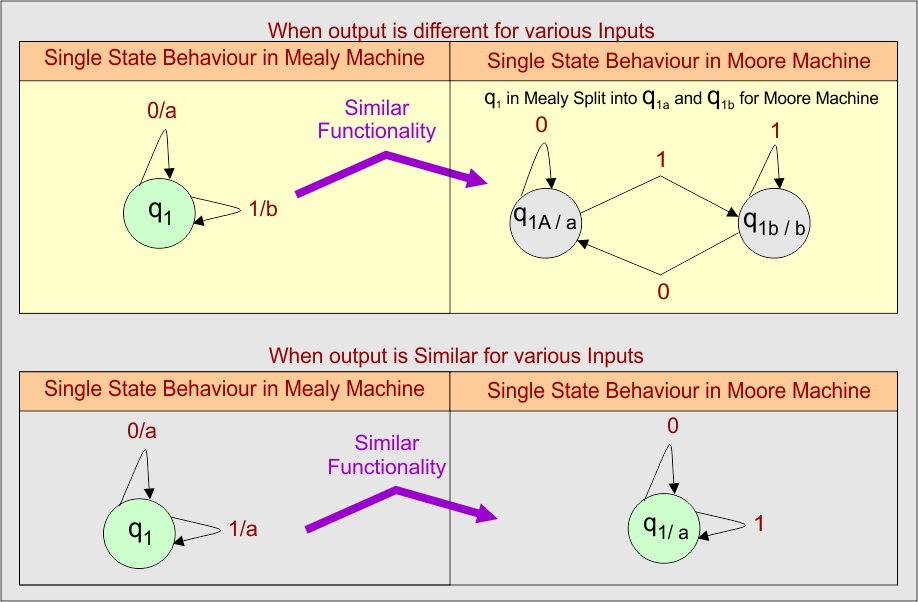

The following diagram explains the difference of single state beharioour in Moore and Mealy Machines in detail

Difference Between Mealy and Moore Machine - Single State Behaviour in TOC

3. Output Function

In Mealy Machine Output Function (λ ) is

λ : Q × Σ → O

Where,

  • Qis current state
  • Σ is current input symbol
  • O isresulting output symbol

So, in a Mealy machine, the output is calculated during transitions, based on the current state and input.

In Moore Machine Output Function (λ) is

λ : Q → O

where,

  • Q is current state
  • O isresulting output symbol

 So, in a Moore machine, the output is tied to each state and remains constant while in that state, regardless of the input.

4. Output Dependency

In a Mealy machine,

  • Output depends on both the current state and the current input.
  • Output can change immediately when the input changes, even without a state change.

In a Moore machine,

The output depends only on the current state, regardless of the input. It changes only when the machine moves to a new state.

5. Output Length

The output length is different in Mealy and Moore for the same output.

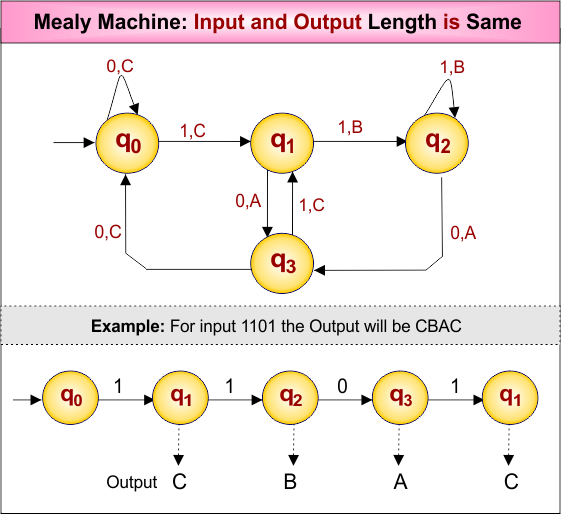

Mealy Machine Output length = input length

Reason: In a Mealy machine, the output is based on the current state and the current input symbol. So, when the machine starts, it enters the initial state, but no output is produced yet. As it reads the first input symbol, the transition occurs and generates an output. So, the first output comes with the first input.

Moore Machine Output length = input length + 1

Reason: In a Moore machine, each state holds an output, and the machine enters the start state before any input is read. Since the output is based only on the state (not on the input), the machine produces the first output immediately, without consuming any input.

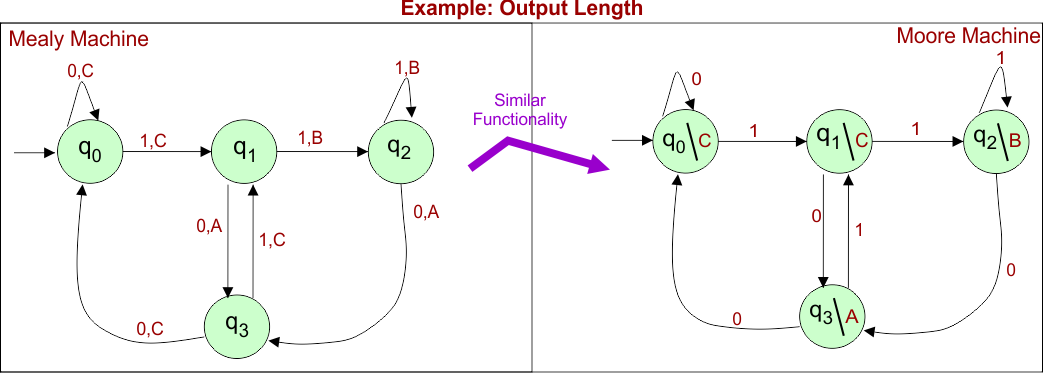

Let’s consider the Moore and Mealy Machines, and we get output from these examples by using a specific input

Difference Between Mealy and Moore Machine - Output Length

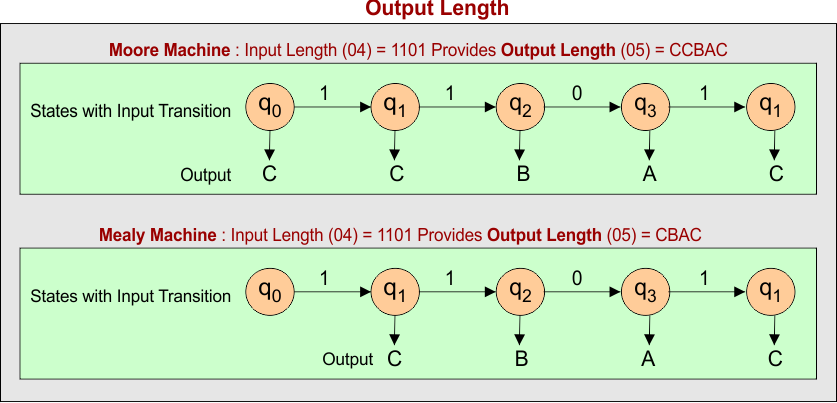

The following figure explains the output length for input “1101” in Moore and Mealy Machines

Difference Between Mealy and Moore Machine - Output Length (Example)

Important: In many cases, application designers align the output length of a Moore machine with its input length by ignoring or discarding the first output in practical applications.

6. Number of States After Conversions

When converting between Mealy and Moore machines, the number of states may change, which depends on the direction of conversion.

Mealy to Moore Conversion

In a Mealy machine, a single state can produce different outputs for different inputs. When converting Mealy to a Moore machine, we must create separate states for each unique output behavior.

  • Result: Number of states increases in most cases.

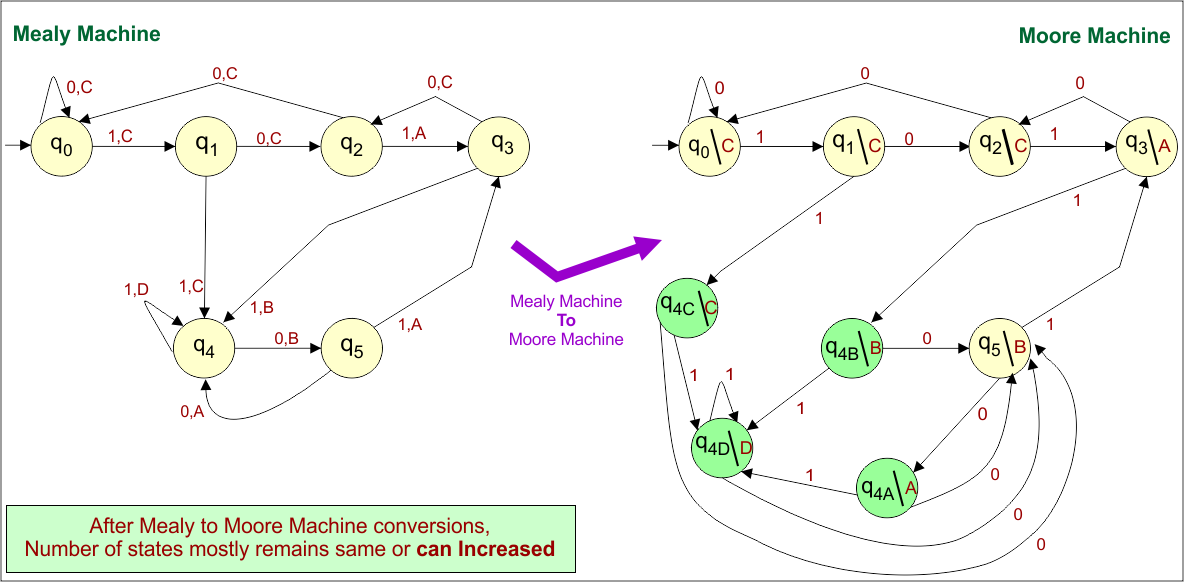

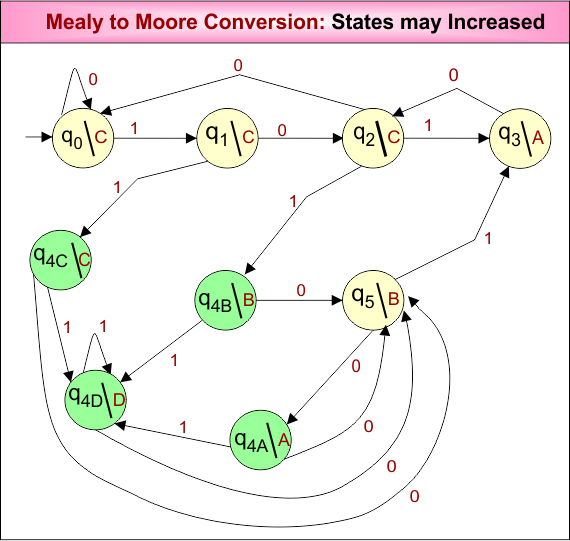

 The following figure explains how the number of states increases when converting from Mealy to Moore.

Difference Between Mealy and Moore Machine - Mealy to Moore Machine conversions (Number of states)

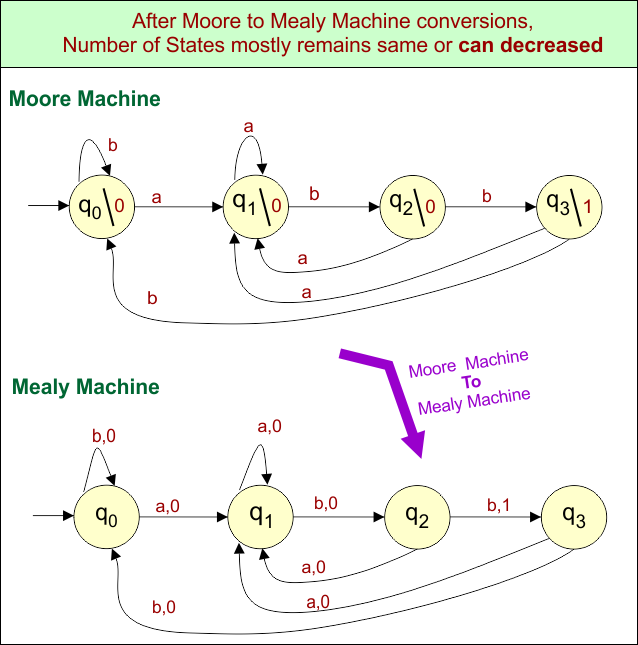

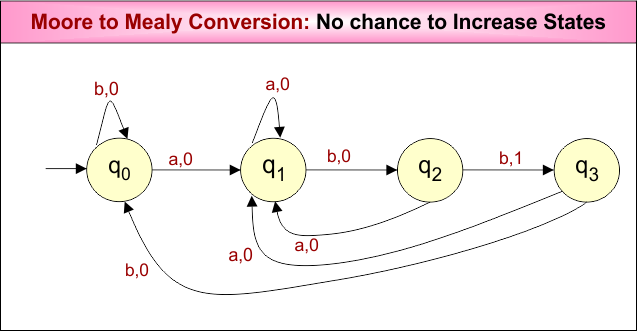

Moore to Mealy Conversion

In a Moore machine, each state has a fixed output. When converting Moore to Mealy machine, we can merge multiple Moore states into one if their transitions lead to the same output behavior.

Result: The Number of states may reduce.

Difference Between Mealy and Moore Machine - Moore to Mealy Machine conversions (Number of states)

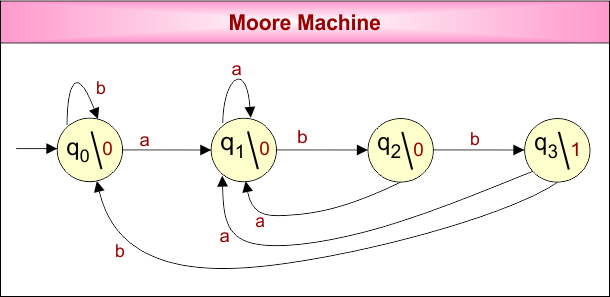

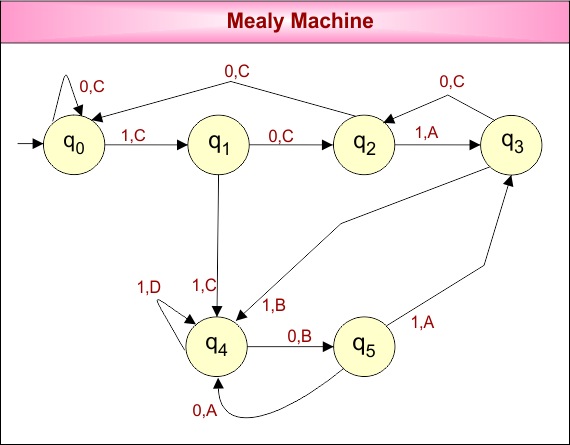

7. Number of States for Equivalent Functionality

To implement the same functionality, a Moore machine usually requires more states than a Mealy machine.

  • Mealy Machine can change output on transitions, so it can handle multiple output behaviors within a single state.

  • Moore Machine produces output only on states, so for every unique output, a separate state is needed. Therefore, a Moore machine may need to split a single Mealy state into multiple states, each with different outputs.

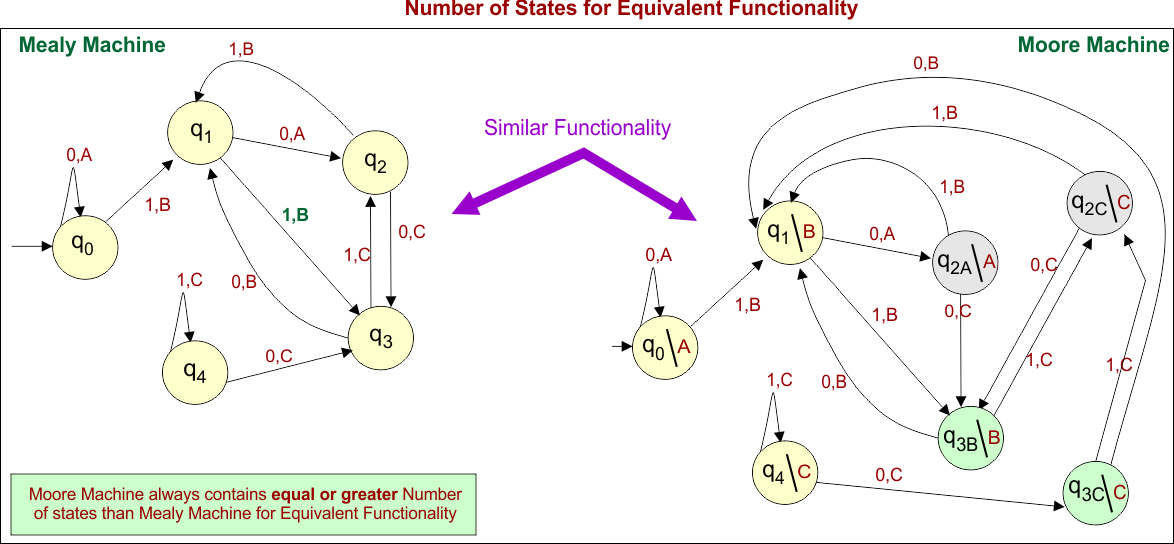

The following figure explains how the number of states can be changed in Moore and Mealy for equivalent functionality.

Difference Between Mealy and Moore Machine - Number of States for Equivalent Functionality

8. Output Synchronization

Synchronization makes sure outputs and transitions follow the clock cycle, avoiding mid-cycle changes or instability.

One clock cycle completes when

  • The system reads the current input,
  • Processes the transition (based on current state and input),
  • Moves to the next state
  • And produces the output

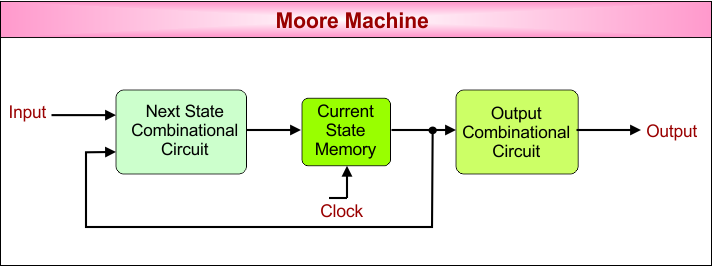

Moore Machine  (One Clock Cycle Working)

I) At the start of the clock cycle:

  • The machine is in a current state.

  • It outputs the value associated with that state.

II) During the clock cycle:

  • It reads the input, decides the next state.

 III) At the rising edge of the clock:

  • The machine transitions to the next state.

  • New output appears in the next cycle (from the new state).

Output is updated only at the end of the cycle, after the state change.

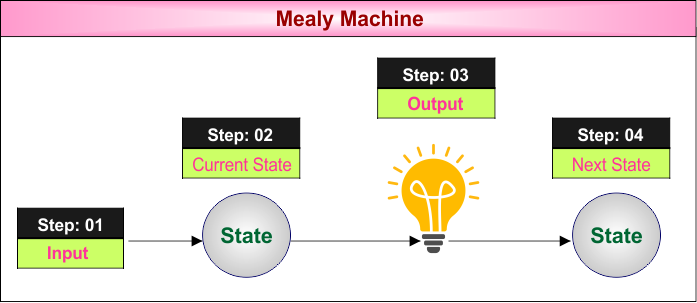

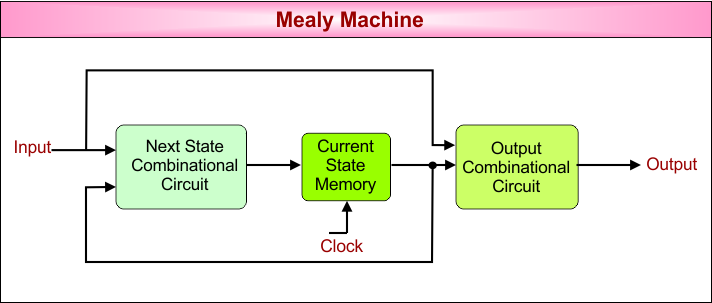

Mealy Machine (One Clock Cycle Working)

I). At the start of the clock cycle:

  • The machine is in its current state.

  • It reads the input immediately.

II). During the same cycle:

  • It calculates the next state.

  • It generates the output based on the current input and state.

III). At the clock edge:

  • The machine moves to the next state, ready for the next input.

Output is generated instantly within the cycle, not delayed to the next.

Result:

  • In a Moore machine, output changes only on state transitions at clock edges, making the output naturally synchronized with the clock.

  • In a Mealy machine, output can change anytime the input changes, causing outputs to be asynchronous and potentially unsynchronized with the clock.

9. Responsiveness

A machine that provides output immediately is considered more responsive. A Mealy machine is more responsive than a Moore machine



Reason:

In Mealy, as the machine reads the input, it immediately provides the output because the transition label shows the relation of input to output.

In Moore as the machine reads the input, it first goes to the next state and then provides the output. So output appeared with a step delay as compared to the Mealy Machine.

The following figure explains the responsiveness in Moore and Mealy Machines

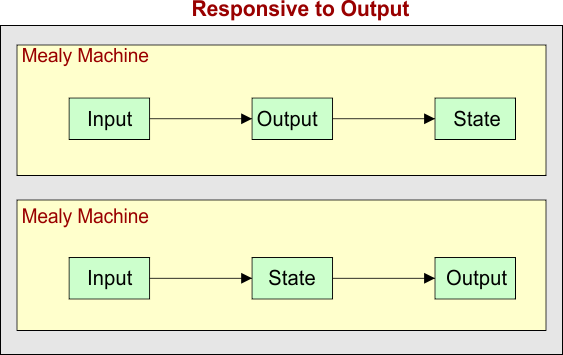

Difference Between Mealy and Moore Machine - Responsive to Output

10. Machine Design Complexity

When comparing Mealy and Moore machines, the design complexity primarily depends on how outputs are generated from states and inputs.

  • Mealy machines are generally less complex to design because they require fewer states—outputs depend on both state and input, so multiple output behaviors can be handled within a single state.

  • Moore machines tend to be more complex with more states, since each state must represent a unique output regardless of input, increasing the number of states needed.

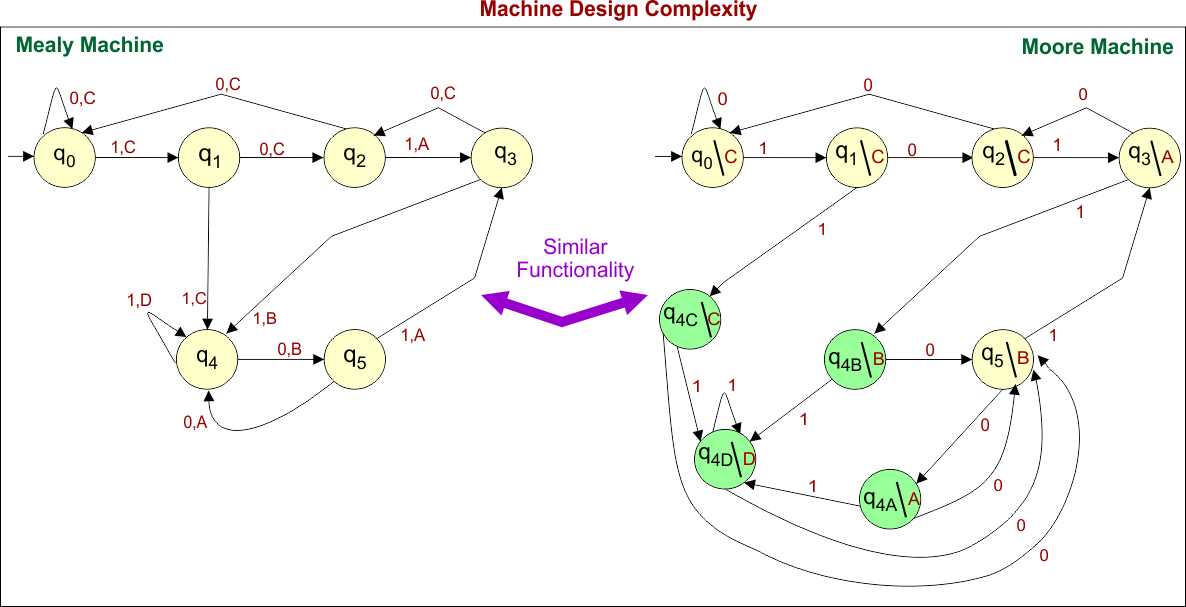

The following figure explains the complexity of designing Moore and Mealy machines

Difference Between Mealy and Moore Machine - Machine Design Complexity

Summary Table: Difference Between Mealy and Moore Machine

Key Point Mealy Machine Moore Machine
State Diagram Labels Transitions are labeled with both input and output. Transitions are labeled with input only and output is associated with states.
Input and Output String Length  If the length of the input string is “N”, then the length of the output string is also “N” If the length of the input string is “N”, then the length of the output string is “N+1”.
Output Function  ‘λ’ is the output function which maps Q×→ O. Where Q is state, and O is output. λ is the output function which maps Q → O. Where Q is state, and O is output.
Output Dependency   Output in Mealy Machine is placed in each transition. That’s why it depends on the present state as well as the present input. So, If input changes, output also changes because output depends on State and input.  Output in Moore Machine is placed within each state. That’s why it depends only on the current state. So, If input changes, output does not change because output depends on only State.
Output States after conversions    The number of states can increase after conversion from Mealy to Moore machine. After conversion from Moore to Mealy machine, state numbers always decrease.
Output synchronization   Output is not synchronized with the clock. Mealy Machines react faster to inputs. Output is synchronized with the clock. Moore Machines react slower to inputs (1 clock cycle later).
Responsiveness: More responsive to inputs since the output can change as soon as the input does. Less immediate response; outputs change only when the state changes.
Number of States for Equivalent Functionality: Often requires fewer states than Moore to achieve the same function. May require more states to represent different outputs for the same set of inputs.
Machine Designing It is more complex to design due to the direct input-output relationship. It is less complex in design because outputs are fixed per state.
