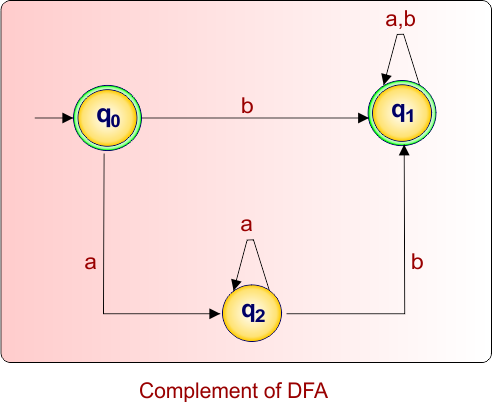

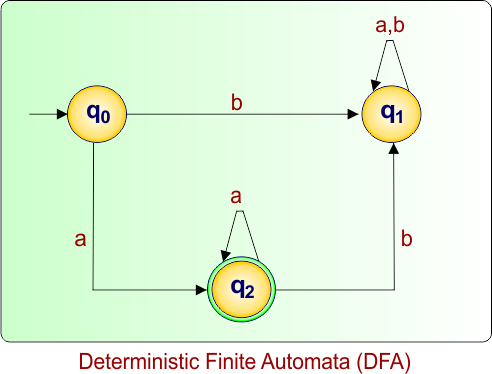

Deterministic Finite Automata

DFA Construction Examples

Here are the Top 50 examples of Deterministic Finite Automata

Deterministic Finite Automata: Example 01

Design a DFA for zero or more occurrences of ‘a

• Regular Expression = a*
• L = {ε, a, aa, aaa, aaaa, …}

Language contains all strings made only of ‘a’, including the empty string.

DFA for RE = a* is given below

Deterministic Finite Automata: Example 02

Design a DFA for zero or more occurrences of ‘a’ or ‘b’

• Regular Expression = (a+b)*
• L = {ε, a, b, aa, ab, ba, bb, aaa, abb, …}

Language contains all strings made using any combination of ‘a’ and ‘b’, including the empty string.

DFA for RE = (a+b)* is given below

Deterministic Finite Automata: Example 03

Design a DFA for zero or more occurrences of ‘a’, ‘b’, ‘c’, or ‘d’

• Regular Expression = (a+b+c+d)*
• L = {ε, a, b, c, d, ab, ac, ad, ba, bb, …, abcd, dbca, …}

Language contains all strings made using any combination of ‘a’, ‘b’, ‘c’, and ‘d’, including the empty string.

DFA for RE = (a+b+c+d)* is given below

Deterministic Finite Automata: Example 04

Design a DFA for strings that are either exactly ‘101’ or end with ‘1’

• Regular Expression = 101 + (0+1)*1
• L = {101, 1, 01, 001, 101, 0001, 1111, …}

Language contains all strings that are exactly ‘101’ or any string over {0,1} that ends with ‘1’.

DFA for RE = 101 + (0+1)*1 is given below

Deterministic Finite Automata: Example 05

Design a DFA for the string that is exactly ‘a’

• Regular Expression = a
• L = {a}

Language contains only one string: exactly a single ‘a’.

DFA for RE = a is given below

Deterministic Finite Automata: Example 06

Design a DFA for the string that is either ‘a’ or ‘b’

• Regular Expression = a + b
• L = {a, b}

Language contains only two strings: ‘a’ or ‘b’.

DFA for RE = a + b is given below

Deterministic Finite Automata: Example 07

Design a DFA for strings that start with ‘a’ followed by any combination of ‘a’ or ‘b’

• Regular Expression = a(a + b)*
• L = {a, aa, ab, aba, abb, aab, aaaa, …}

Language contains all strings that begin with ‘a’ and are followed by zero or more symbols from {a, b}.

DFA for RE = a(a + b)* is given below

Deterministic Finite Automata: Example 08

Design a DFA for zero or more occurrences of ’10’ or ‘1’

• Regular Expression = (10 + 1)*
• L = {ε, 1, 10, 11, 101, 1010, 1110, 10110, …}

Language contains all strings formed by repeating ‘1’ or ’10’ any number of times, including the empty string.

DFA for RE = (10 + 1)* is given below

Deterministic Finite Automata: Example 09

Design a DFA for strings that start with ‘a’ followed by zero or more ‘bb’ pairs, then any combination of ‘a’ or ‘b’

• Regular Expression = (a(bb)*)(a + b)*
• L = {a, abb, abbaa, abbb, abba, abbab, abbbba, abbbbb, …}

Language contains all strings that begin with ‘a’, followed by zero or more repetitions of “bb”, and then any number of ‘a’s or ‘b’s.

DFA for RE = (a(bb)*)(a + b)* is given below

Deterministic Finite Automata: Example 10

Design a DFA for strings that end with ‘ab’ and may have any combination of ‘a’, ‘b’, ‘c’, or ‘d’ before it

• Regular Expression = (a + b + c + d)*ab
• L = {ab, aab, cab, dab, cdab, ddab, bacdab, …}

Language contains all strings over {a, b, c, d} that end with the substring “ab”.

DFA for RE = (a + b + c + d)*ab is given below

Deterministic Finite Automata: Example 11

Design a DFA for zero or more occurrences of ’01’, ’10’, or ‘1’

• Regular Expression = (01 + 10 + 1)*
• L = {ε, 1, 01, 10, 101, 0110, 1101, 1010, 111, …}

Language contains all strings formed by repeating any combination of ’01’, ’10’, or ‘1’, including the empty string.

DFA for RE = (01 + 10 + 1)* is given below

Deterministic Finite Automata: Example 12

Design a DFA for strings that end with ‘abc’ and may have any combination of ‘a’, ‘b’, or ‘c’ before it

• Regular Expression = (a + b + c)*abc
• L = {abc, aabc, babc, cabc, ababc, ccbabc, …}
• Some rejected strings = {ab, ac, abca, aacb, bc, cba, …}

Language contains all strings over {a, b, c} that end with the substring “abc”.

DFA for RE = (a + b + c)*abc is given below

Deterministic Finite Automata: Example 13

Design a DFA for strings that contain ’10’ followed by zero or more ‘1’s, with any combination of ‘0’ or ‘1’ before it

• Regular Expression = (0 + 1)*101*
• L = {10, 101, 1011, 0010, 1101, 00010111, …}
• Some rejected strings = {1, 0, 11, 100, 1110, 0011, …}

Language contains all strings over {0, 1} that include the substring “10” followed by zero or more 1’s.

DFA for RE = (0 + 1)*101* is given below

Deterministic Finite Automata: Example 14

Design a DFA for strings that start with ’10’, followed by zero or more ‘1’s, and then any combination of ‘0’ or ‘1’

• Regular Expression = 101*(0 + 1)*
• L = {10, 101, 1010, 1011, 10110, 1011110, …}
• Some rejected strings = {1, 0, 11, 0010, 110, …}

Language contains all strings that begin with “10”, optionally followed by more ‘1’s, and then any mix of ‘0’s and ‘1’s.

DFA for RE = 101*(0 + 1)* is given below**

Deterministic Finite Automata: Example 15

Design a DFA for strings that start with ‘bab’ followed by any combination of ‘a’ or ‘b’

• Regular Expression = bab(a + b)*
• L = {bab, baba, babb, babaa, babab, babba, babbbb, …}
• Some rejected strings = {ba, ab, bbab, ababa, bba, …}

Language contains all strings that begin with “bab”, followed by zero or more symbols from {a, b}.

DFA for RE = bab(a + b)* is given below

Deterministic Finite Automata: Example 16

Design a DFA for strings that start and end with the same bit (either ‘1’…‘1’ or ‘0’…‘0’), with any combination of ‘0’ or ‘1’ in between

• Regular Expression = 1(1 + 0)*1 + 0(1 + 0)*0
• L = {11, 101, 1001, 1101, 010, 0010, 0000, 0110, …}
• Some rejected strings = {1, 0, 10, 01, 1010, 011, 110, …}

Language contains all strings over {0,1} that start and end with the same bit, and are at least two characters long.

DFA for RE = 1(1 + 0)*1 + 0(1 + 0)*0 is given below

Deterministic Finite Automata: Example 17

Design a DFA for strings that start with ’10’, end with ‘1’, and have any combination of ‘101’, ‘0’, or ‘1’ in between

• Regular Expression = 10(101 + 0 + 1)*1
• L = {101, 1001, 10101, 101011, 100101, 101101, …}
• Some rejected strings = {10, 1010, 11, 100, 101100, 0, 1, …}

Language contains all strings that begin with “10”, end with “1”, and contain any number of repetitions of “101”, “0”, or “1” in between.

DFA for RE = 10(101 + 0 + 1)*1 is given below

Deterministic Finite Automata: Example 18

Design a DFA for strings that are either a single ‘a’ or start with ‘a’, followed by any combination of ‘a’ or ‘b’, and ending with ‘ba’

• Regular Expression = a(a + b)*ba + a
• L = {a, aba, abba, aaba, aaabba, abbba, …}
• Some rejected strings = {b, ab, ba, aa, abab, abb, baa, …}

Language contains strings that are either exactly “a” or start with ‘a’, followed by any number of ‘a’s and ‘b’s, and end with “ba”.

DFA for RE = a(a + b)*ba + a is given below

Deterministic Finite Automata: Example 19

Design a DFA for zero or more repetitions of ‘ab’, ‘bb’, ‘cc’, or ‘dd’

• Regular Expression = (ab + bb + cc + dd)*
• L = {ε, ab, bb, cc, dd, abbb, abccdd, bbabcc, ddab, …}
• Some rejected strings = {a, b, c, d, abc, bbc, bbd, abbd, cd, …}

Language contains all strings formed by repeating any number (including zero) of the substrings “ab”, “bb”, “cc”, or “dd”.

DFA for RE = (ab + bb + cc + dd)* is given below

Deterministic Finite Automata: Example 20

Design a DFA for strings that are either ‘aa’, ‘ba’, or any number of repetitions of ‘aa’ and ‘b’

• Regular Expression = aa + ba + (aa + b)*
• L = {ε, aa, ba, b, bb, aaaabb, aab, bbaa, bbaab, …}
• Some rejected strings = {a, ab, bab, aba, aabbba, …}

Language contains strings that are either exactly ‘aa’, ‘ba’, or any number of repetitions of ‘aa’ and ‘b’ (including the empty string if not starting with aa or ba).

DFA for RE = aa + ba + (aa + b)* is given below

Deterministic Finite Automata: Example 21

Design a DFA for strings that are either exactly ‘ba’ or any number of repetitions of ‘aa’ and ‘b’

• Regular Expression = ba + (aa + b)*
• L = {ε, ba, b, bb, aa, aab, bba, aabaa, bbbaa, …}
• Some rejected strings = {a, ab, aba, baa, bab, abaa, aaa, …}

Language contains strings that are either exactly ‘ba’, or built from any number of ‘aa’ and ‘b’ in any order.

DFA for RE = ba + (aa + b)* is given below

Deterministic Finite Automata: Example 22

Design a DFA for strings with zero or more repetitions of ’11’, followed by ‘0’ or ‘1’, and ending with ’00’

• Regular Expression = (11)*(0 + 1)(00)
• L = {100, 1100, 111100, 11111100, 1111100, 01100, …}
• Some rejected strings = {ε, 00, 11, 01, 1111, 110, 111, 1011, …}

Language contains strings that may start with repeated “11”, then have either a ‘0’ or ‘1’, and must end with “00”.

DFA for RE = (11)*(0 + 1)(00) is given below

Deterministic Finite Automata: Example 23

Design a DFA for strings with zero or more ‘1’s, followed by either ‘0’ or ‘1’, and then zero or more repetitions of ’00’

Regular Expression = (1)*(0 + 1)(00)*
L = {0, 1, 10, 100, 1100, 11100, 1110000, …}
Some rejected strings = {ε, 00, …}

Language contains strings that start with any number of ‘1’s, followed by a single ‘0’ or ‘1’, and may end with zero or more “00”s.

DFA for RE = (1)*(0 + 1)(00)* is given below

Deterministic Finite Automata: Example 24

Design a DFA for strings that are either:

• Zero or more repetitions of “00” followed by ‘0’ or ‘1’, or

• Zero or more repetitions of ‘1’ alone

Regular Expression = (00)*(0 + 1) + (1)*
L = {0, 1, 11, 111, 001, 0001, 0000, 000001, …}
Some rejected strings = {00, 10, 100, 101, 011, …}

Language contains either strings made of only ‘1’s (including empty), or strings starting with even number of 0’s followed by a single 0 or 1.

DFA for RE = (00)*(0 + 1) + (1)* is given below

Deterministic Finite Automata: Example 25

Design a DFA for strings that are either:

• Exactly ‘0’,

• Or ‘1’ followed by zero or more ‘0’s and then a ‘0’ or ‘1’,

• Or any number of ‘1’s (including the empty string)

Regular Expression = 0 + 10*(0 + 1) + (1)*

• L = {ε, 0, 1, 11, 111, 10, 100, 1000, 1001, 101, …}
• Some rejected strings = {00, 110, 001, 010, 1110, 1010, …}

Language contains:

• A single 0

• OR strings that begin with ‘1’, followed by zero or more ‘0’s and then a ‘0’ or ‘1’

• OR strings made up entirely of ‘1’s

DFA for RE = 0 + 10*(0 + 1) + (1)* is given below

Deterministic Finite Automata: Example 26

Design a DFA for strings that are either:

• Exactly “11”,
• Exactly “00”,
• Exactly “0”,
• Or “1” followed by zero or more “0”s

Regular Expression = 11 + 00 + 0 + 10*

• L = {11, 00, 0, 10, 100, 1000, 10000, …}
• Some rejected strings = {ε, 1, 01, 101, 110, 000, 111, …}

Language contains only specific patterns: “11”, “00”, “0”, or strings starting with “1” and followed by any number of “0”s (including none).

DFA for RE = 11 + 00 + 0 + 10* is given below

Deterministic Finite Automata: Example 27

Design a DFA for strings that contain any combination of ‘a’ and ‘b’, followed by an ‘a’, then any one symbol from {a, b}, and ending with a ‘b’

• Regular Expression = (a + b)*a(a + b)b
• L = {aab, ababb, aaab, babaab, …}
• Some rejected strings = {ε, a, b, ab, ba, aa, bb, …}

DFA for RE = (a + b)*a(a + b)b is given below

Deterministic Finite Automata: Example 28

Design a DFA for strings that are either exactly ‘0’ or start with ‘1’, followed by any combination of ‘0’ and ‘1’, and end with ’10’

• Regular Expression = 0 + 1(0 + 1)*10
• L = {0, 110, 1010, 10010, 1110, 100110, …}
• Some rejected strings = {1, 10, 00, 011, 100, 1101, 111, …}

DFA for RE = 0 + 1(0 + 1)*10 is given below

Deterministic Finite Automata: Example 29

Design a DFA for strings that consist of zero or more repetitions of ’00’ or ’11’, followed by a ‘1’, and ending with either ‘0’ or ‘1’

• Regular Expression = (00 + 11)*1(0 + 1)
• L = {10, 11, 0010, 0011, 00110010, 001111, …}
• Some rejected strings = {ε, 0, 00, 01, 110, 001100, 1000, …}

DFA for RE = (00 + 11)*1(0 + 1) is given below

Deterministic Finite Automata: Example 30

Design a DFA for strings that start with ‘1’, followed by either ‘0’ or ‘1’, and then zero or more repetitions of ’00’ or ’11’

Regular Expression = 1(0 + 1)(00 + 11)*
L = {10, 11, 1000, 1111, 100011, 110000, 10110011, …}
Some rejected strings = {ε, 0, 1, 00, 01, 1010, 1110, 1101, …}

Language contains strings that start with ‘1’, then have one symbol from {0,1}, and then zero or more pairs of either ’00’ or ’11’.

DFA for RE = 1(0 + 1)(00 + 11)* is given below

Deterministic Finite Automata: Example 31

Design a DFA for strings that are either:

• A single ‘1’ followed by zero or more repetitions of “11”,

• or “00” followed by zero or more repetitions of “00”

Regular Expression = 1(11)* + 00(00)*

• L = {1, 111, 11111, 00, 0000, 000000, 1111111, 00000000, …}
• Some rejected strings = {11, 0, 10, 001, 100, 1110, 0001, …}

Language contains either strings starting with ‘1’ and followed by even number of ‘1’s, or strings starting with “00” and followed by even number of ‘0’s.

DFA for RE = 1(11)* + 00(00)* is given below

Deterministic Finite Automata: Example 32

Design a DFA for strings that are either:

• Exactly ‘a’, ‘b’,

• Or ‘c’ followed by zero or more repetitions of “ab”, “bb”, or “cc”

Regular Expression = a + b + c(ab + bb + cc)*

• L = {a, b, c, cab, cbb, ccc, cabbb, cabab, cbbcc, cabbbccab, …}
• Some rejected strings = {ab, ca, cb, cac, cba, cbc, abc, bac, …}

Language contains strings that are exactly ‘a’ or ‘b’, or start with ‘c’ and are followed by any number (including zero) of “ab”, “bb”, or “cc” blocks.

DFA for RE = a + b + c(ab + bb + cc)* is given below

Deterministic Finite Automata: Example 33

Design a DFA for strings that start with ‘ac’, followed by any combination of ‘a’, ‘b’, or ‘c’, and end with ‘ba’

• Regular Expression = ac(a + b + c)*ba
• L = {acba, acaba, acbba, accba, acabcba, acacacba, …}
• Some rejected strings = {ac, acb, acbb, acbca, ba, abca, aca, …}

Language contains all strings that begin with “ac”, end with “ba”, and have any sequence of ‘a’, ‘b’, or ‘c’ in between.

DFA for RE = ac(a + b + c)*ba is given below

Deterministic Finite Automata: Example 34

Design a DFA for strings that start with ‘d’, followed by any combination of ‘a’, ‘b’, or ‘c’, and end with ‘bad’

• Regular Expression = d(a + b + c)*bad
• L = {dbad, dabcbad, dabcabcabcbad, daaaabcbad, …}
• Some rejected strings = {d, bad, dbac, dabcad, dab, daaad, …}

Language contains all strings that begin with “d”, end with “bad”, and have any sequence of ‘a’, ‘b’, or ‘c’ in between.

DFA for RE = d(a + b + c)*bad is given below

Deterministic Finite Automata: Example 35

Design a DFA for strings that start with ‘aba’, followed by any number of repetitions of ‘aa’ or ‘b’, and end with ‘ba’

• Regular Expression = aba(aa + b)*ba
• L = {ababa, ababba, ababba, ababbaaaaba, …}
• Some rejected strings = {aba, abaa, abba, abaaa, abab, ababaaa, …}

Language contains all strings that begin with “aba”, end with “ba”, and in between may have zero or more repetitions of “aa” or “b”.

DFA for RE = aba(aa + b)*ba is given below

Deterministic Finite Automata: Example 36

Design a DFA for strings formed by zero or more repetitions of ‘aaa’ or ‘bbb’, followed by ‘ba’

• Regular Expression = (aaa + bbb)*ba
• L = {ba, aaabbbba, bbbba, aaaba, aaabbbaaaba, …}
• Some rejected strings = {a, b, aaa, bbb, abab, baa, abba, aaab, …}

Language contains strings that end in “ba”, and may have zero or more blocks of “aaa” or “bbb” before it.

DFA for RE = (aaa + bbb)*ba is given below

Deterministic Finite Automata: Example 37

Design a DFA for strings that start with ‘aa’ or ‘bb’, followed by any combination of zero or more ‘aa’ blocks or single ‘b’s, and end with ‘ba’

• Regular Expression = (aa + bb)((aa)* + b)*ba
• L = {aaba, bbbaa, aaaaba, bbaabba, bbaabba, aabbaabba, …}
• Some rejected strings = {ba, aba, aab, bbb, aaab, abba, ababa, …}

Language contains strings that start with “aa” or “bb”, may include any number of ‘aa’ or ‘b’, and must end in “ba”.

DFA for RE = (aa + bb)((aa)* + b)*ba is given below

Deterministic Finite Automata: Example 38

Design a DFA for strings that start with ’11’, followed by either ‘0’ or ‘1’, and end with ’00’

• Regular Expression = (11)(0 + 1)(00)
• L = {11000, 11100}
• Some rejected strings = {11, 110, 111, 1000, 0000, 11001, …}

Language contains only strings that begin with “11”, then have a single ‘0’ or ‘1’, and end with “00”.

DFA for RE = (11)(0 + 1)(00) is given below

Deterministic Finite Automata: Example 39

Design a DFA for strings that are either exactly ’11’ or start with ‘101’, followed by any combination of ‘0’ or ‘1’, and ending with ‘1’

• Regular Expression = 11 + 101(1 + 0)*1
• L = {11, 1011, 10101, 101001, 101111, 1010000001, …}
• Some rejected strings = {1, 0, 101, 1001, 1010, 111, 101100, …}

Language contains either:

• The exact string “11”, OR
• Strings that begin with “101”, followed by any mix of 0s and 1s, and ending in “1”.

DFA for RE = 11 + 101(1 + 0)*1 is given below

Deterministic Finite Automata: Example 40

Design a DFA for strings that are either zero or more repetitions of “001”, or exactly “00”

• Regular Expression = (001)* + (00)
• L = {ε, 001, 001001, 001001001,…………., 00}
• Some rejected strings = {0, 1, 01, 000, 0010, 00100, 010, …}

Language contains either:

• the exact string “00”, or

• any number (including zero) of the substring “001” repeated.

DFA for RE = (001)* + (00) is given below

Deterministic Finite Automata: Example 41

Design a DFA for strings that start with ‘aba’ or ‘bab’, followed by any combination of ‘a’ or ‘b’

• Regular Expression = aba(a + b)* + bab(a + b)*
• L = {aba, abab, abaa, ababb, bab, baba, babb, …}
• Some rejected strings = {a, b, ab, ba, abb, baa, …}

Language contains all strings that begin with either ‘aba’ or ‘bab’, followed by any number of ‘a’ or ‘b’.

DFA for RE = aba(a + b)* + bab(a + b)* is given below

Deterministic Finite Automata: Example 42

Design a DFA for strings that start with ‘aa’, followed by zero or more repetitions of ‘aba’ or ‘bab’

• Regular Expression = aa(aba + bab)*
• L = {aa, aaaba, aaababab, aaabababbab, …}
• Some rejected strings = {a, aaa, aab, aaba, aabba, abaa, aabaa, …}

Language contains all strings that begin with “aa”, and are followed by zero or more repetitions of “aba” or “bab”.

DFA for RE = aa(aba + bab)* is given below

Deterministic Finite Automata: Example 43

Design a DFA for strings that start with ’00’, followed by zero or more repetitions of ’11’, and ending with ‘101’

• Regular Expression = 00(11)*101
• L = {00101, 0011101, 001111101, …}
• Some rejected strings = {00, 001, 0010, 00100, 01101, 000101, …}

Language contains strings that begin with “00”, may have zero or more “11” pairs, and must end with “101”.

DFA for RE = 00(11)*101 is given below

Deterministic Finite Automata: Example 44

Design a DFA for strings that are either:

• ‘1’ followed by ‘0’ or ’11’,

• OR ‘0’ followed by ’00’ or ‘1’

Regular Expression = 1(0 + 11) + 0(00 + 1)

• L = {10, 111, 000, 01}
• Some rejected strings = {1, 0, 11, 001, 100, 1011, 0001, …}

Language contains exactly four valid strings: “10”, “111”, “000”, and “01”.

DFA for RE = 1(0 + 11) + 0(00 + 1) is given below

Deterministic Finite Automata: Example 45

Design a DFA for strings that are either exactly ‘a’, ‘b’, or ‘c’, or start with ‘d’ followed by zero or more repetitions of ‘ab’, ‘bb’, ‘cc’, or ‘dd’

• Regular Expression = a + b + c + d(ab + bb + cc + dd)*
• L = {a, b, c, d, dab, dbb, dcc, ddd, , dbbabdd, …}
• Some rejected strings = {ab, da, dc, dbc, dbbd, ddabbdc, dabba, …}

Language contains:

• Single-symbol strings: “a”, “b”, “c”, or

• Strings starting with “d”, followed by any number of “ab”, “bb”, “cc”, or “dd”

DFA for RE = a + b + c + d(ab + bb + cc + dd)* is given below

Deterministic Finite Automata: Example 46

Design a DFA for strings that either start with ‘bb’ followed by any combination of ‘a’ or ‘b’, or are exactly ‘abab’

Regular Expression = bb(a + b)* + abab
L = {bb, bba, bbb, bbaa, bbab, bbaba,……., abab}
Some rejected strings = {ab, ba, aabb, abba, baba, aba, …}

Language contains:

• All strings that begin with “bb” and continue with any number of ‘a’ or ‘b’,

• Or the exact string “abab”

DFA for RE = bb(a + b)* + abab is given below

Deterministic Finite Automata: Example 47

Design a DFA for strings that start with ‘acd’, followed by any combination of ‘a’, ‘b’, or ‘c’, and end with ‘bad’

• Regular Expression = acd(a + b + c)*bad
• L = {acdbad, acdabad, acdbcbad, acdabcbabcbad, …}
• Some rejected strings = {acd, bad, acdb, acdba, acdbc, acdcba, …}

Language contains all strings that begin with “acd”, end with “bad”, and have any sequence of ‘a’, ‘b’, or ‘c’ in between.

DFA for RE = acd(a + b + c)*bad is given below

Deterministic Finite Automata: Example 48

Design a DFA for strings that start with zero or more ‘b’s, followed by zero or more repetitions of ‘aaa’ or ‘bbb’, and end with ‘ba’

Regular Expression = b*(aaa + bbb)*ba
L = {ba, bba, bbaaaba, bbba, bbbbbbba, baaabbbba, …}
Some rejected strings = {a, b, bb, ab, aaa, bbb, baba, babba, abba, …}

Language contains all strings that:

• Begin with any number of ‘b’,

• May have repetitions of “aaa” or “bbb”,

• And must end with “ba”

DFA for RE = b*(aaa + bbb)*ba is given below

Deterministic Finite Automata: Example 49

Design a DFA for strings that are either:

• Zero or more repetitions of “11” followed by zero or more repetitions of “00”,

• OR exactly “001” or “111”

Regular Expression = (11)*(00)* + (001 + 111)

• L = {ε, 11, 00, 1100, 1111, 0000, 11110000, ……., 001, 111}
• Some rejected strings = {1, 0, 10, 100, 101, 11001, …}

DFA for RE = (11)*(00)* + (001 + 111) is given below

Deterministic Finite Automata: Example 50

Design a DFA for strings that are either:

• Zero or more repetitions of “11”,

• OR exactly “001” or “111”,

• OR zero or more repetitions of “00”

Regular Expression = (11)* + (001 + 111) + (00)*

• L = {ε, 11, 1111, 111111, 00, 0000, 000000,…………., 001, 111}
• Some rejected strings = {1, 0, 01, 10, 100, 110, 011, 0011, …}

DFA for RE = (11)* + (001 + 111) + (00)* is given below

Deterministic Finite Automata: Example 51

Design a DFA for strings that start with ‘bb’, followed by any combination of ‘a’ or ‘b’, then ‘aa’, and end with either ‘aa’ or ‘bb’

• Regular Expression = bb(a + b)*aa(aa + bb)
• L = {bbaaabb, bbaaaaa, bbaaaa, bbabaaabb, bbbaabb, …}
• Some rejected strings = {bb, bbaa, bbaab, bbab, bbabaaa, bbaabbb, …}

Language contains strings that:

• Start with “bb”,

• Have any number of ‘a’ or ‘b’,

• Then contain “aa”,

• And end with either “aa” or “bb”

DFA for RE = bb(a + b)*aa(aa + bb) is given below

Applications of Deterministic Finite Automata
