Regular Expression In TOC

Regular Expression in TOC is a powerful mathematical tool used to define regular languages, which are recognized by Finite Automata.  They are similar to arithmetic, logic, and Boolean expressions in representation but differnt in their operation and purpose.

• Regular expressions generate sets of strings (finite or infinite in number) that always represent a unique and specific regular language.
• Each of these regular languages can be recognized and accepted by a finite automata.

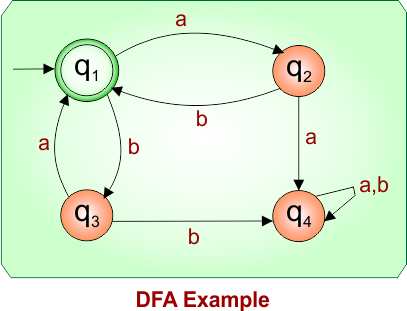

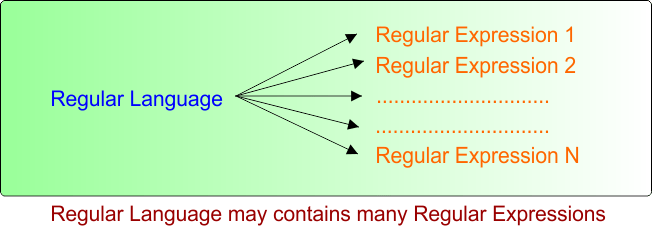

The following figures show the above description

The main uses of regular expressions in TOC  are

• Pattern Recognition: Represent patterns that can be recognized by finite automata (DFA and NFA).
• Compiler Design: Used in lexical analysis to tokenize input strings during compilation.

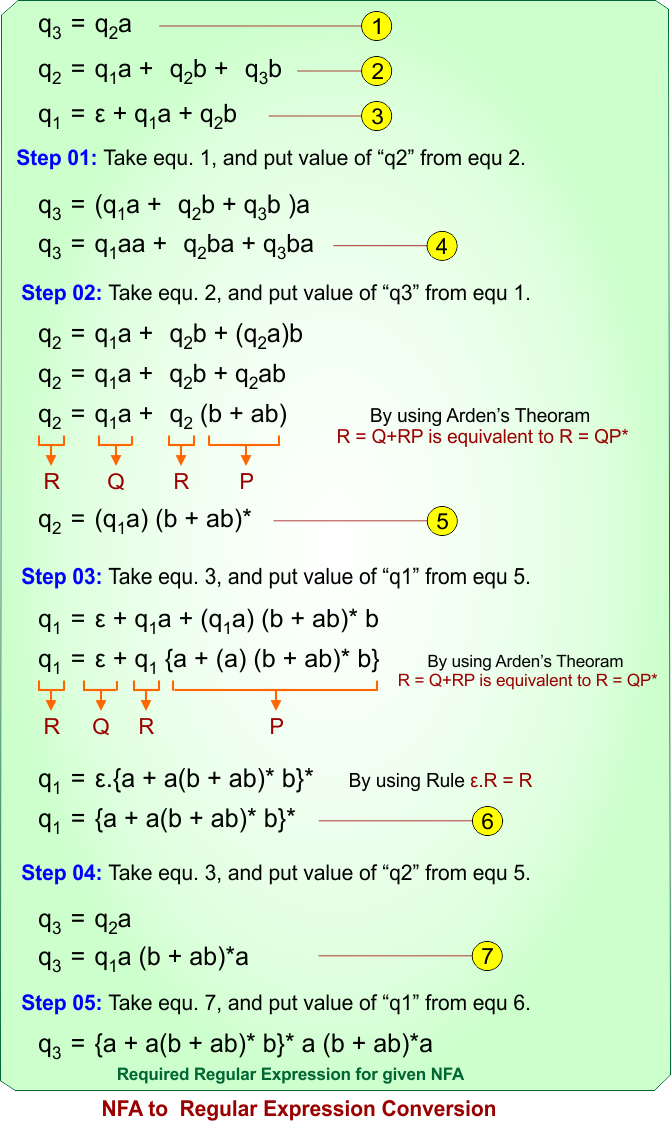

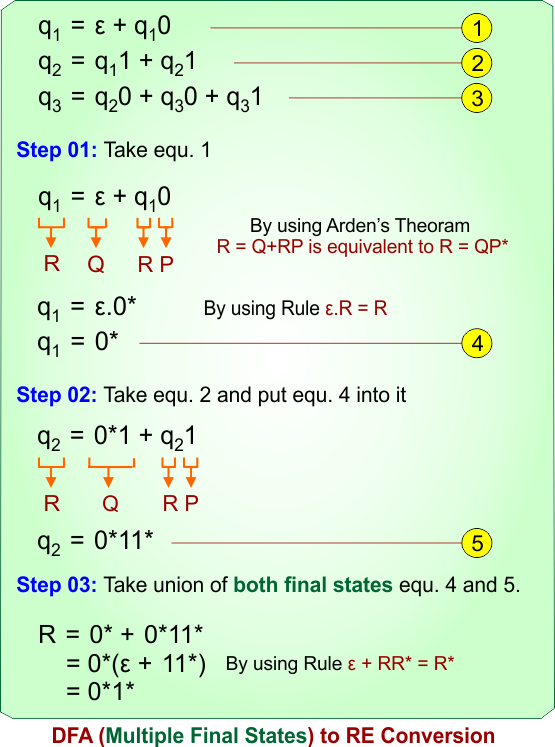

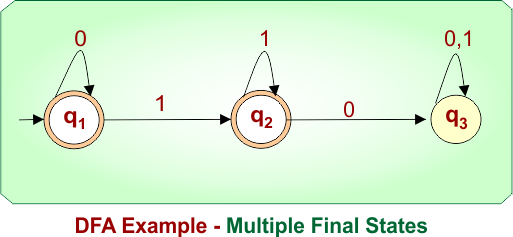

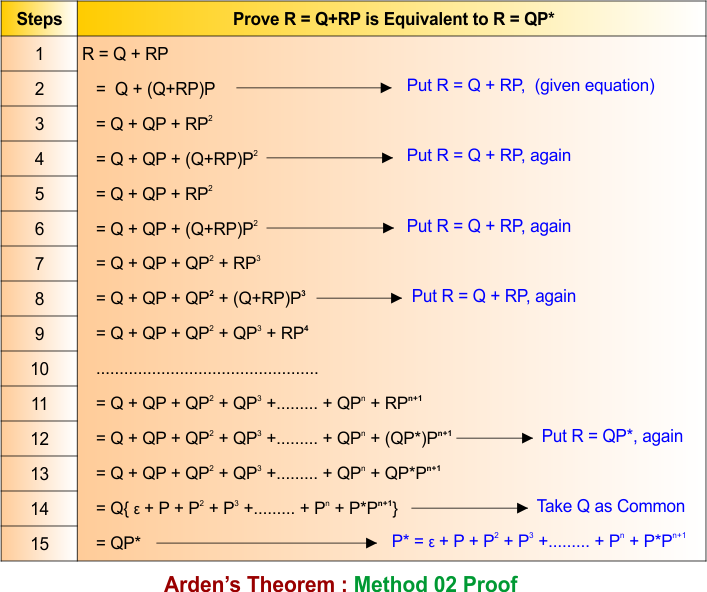

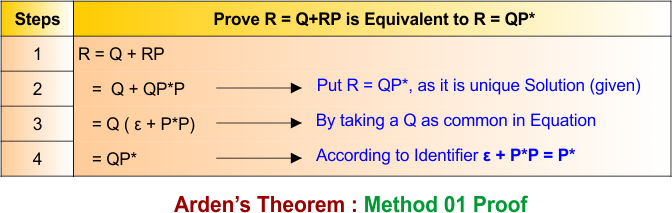

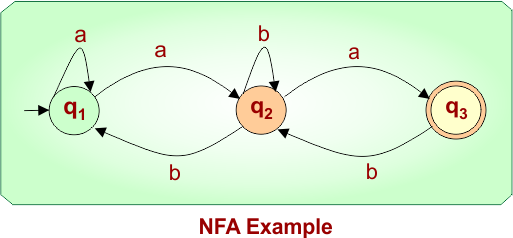

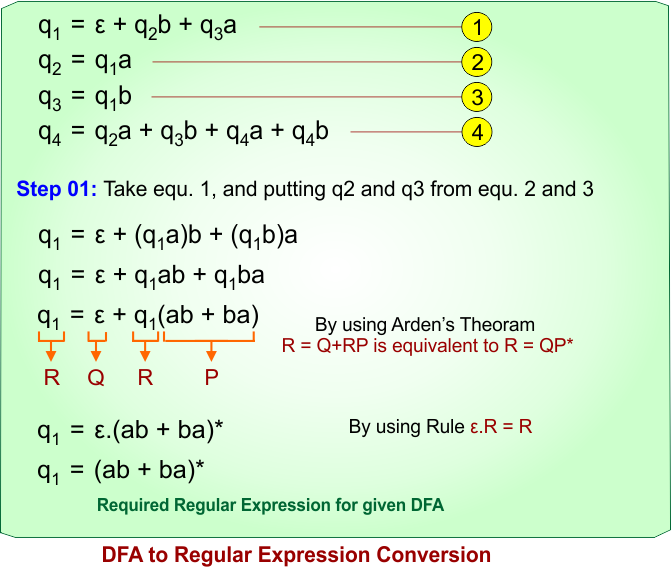

• Automata Conversion: Enable conversion between regular expressions and finite automata for language recognition.
• Theoretical Analysis: Help analyze and prove properties of languages within formal language theory.

Let’s Explain Various Categories of Regular Expressions in the TOC. These categories include Basic, start with, end with, and start and end with some characters. Let’s see more than 40 examples that fall under these categories. Each example contains the following

• Derived strings from a given regular expression
• Specific Language is extracted from the given regular expression
• Deterministic Finite Automata (DFA) for a given expression.

Let’s start with the first category with its 21 examples

Category 1: Basic Regular Expressions

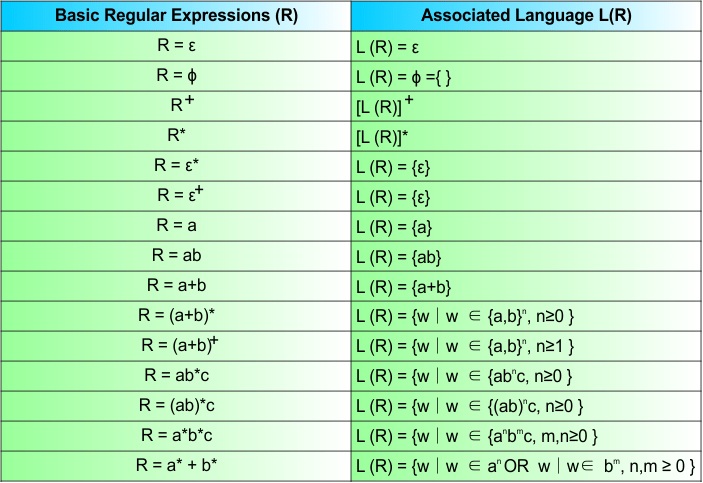

Here’s a table that explains the basic components of regular expressions. The first column shows the expression, and the second explains its meaning.

Sr.	Regular Expression	Explanation
1	a	Only a single character "a".
2	ab	Sequence "a" followed by "b".
3	(a+b)	Either "a" or "b".
4	(a)*	Zero (ε) or more occurrences of "a".
5	(ab)*	Zero (ε) or more repetitions of the sequence “ab".
6	(a+b)*	Zero (ε) or more symbols from the alphabet {a,b} of any length, any order.
7	(a)+	One or more occurrences of "a".
8	(ab)+	One or more repetitions of the sequence "ab".
9	(a+b)+	One or more symbols chosen from "a" or "b".
10	(10+1)*	Zero (ε) or more repetitions of "10" or "1".
11	(01+10+1)*	Zero (ε) or more repetitions of "01", "10", or "1".
12	(a+b+c+d)*	Zero (ε) or more symbols chosen from "a", "b", "c", or "d".
13	(a+b+c+d)+	One or more symbols chosen from "a", "b", "c", or "d".
14	(ab+bb+cc+dd)*	Zero (ε) or more repetitions of "ab", "bb", "cc", or "dd".
15	101 + (0+1)*1	Either "101" or any combination of 0s and "1s” ending in "1".
16	11 + 00 + 0 + 10*	Either "11", "00", a single "0", or "1" followed by zero or more "0s”.
17	1(0 + 11) + 0(00 + 1)	Either "1" followed by "0" or "11", or "0" followed by "00" or "1".
18	ba + (aa + b)*	Either "ba" or any number of repetitions of "aa" or "b".
19	aa + ba + (aa + b)*	Either "aa", "ba", or any number of repetitions of "aa" or "b".
20	(00)*(0 + 1) + (1)*	Zero (ε) or more "00"s followed by 0 or 1, or any number of "1s”.
21	(001)* + (00)	Zero (ε) or more repetitions of "001", or exactly "00".

Note: All strings derived from step 01 are accepted by the DFA, which is designed in step 02.

Step 02: Possible strings, Language, and DFA for RE = a are given in the following diagram

Example 1.2: Regular Expression = ab

Step 01:  Find the strings that can be derived from the given expression RE = “ab”.. The following figure shows all possible strings that can be derived from RE = “ab”.

Note Again: All strings derived from step 01 are accepted by the DFA, which is designed in step 02.

Step 02: Possible strings, Language, and DFA for RE = “ab” are given in the following diagram

Example 1.3: Regular Expression = (a+b)

Step 01:  Find the strings that can be derived from the given expression RE = (a+b). The following figure shows all possible strings that can be derived from RE = (a+b).

Step 02: Possible strings, Language, and DFA for RE = (a+b) are given in the following diagram

Category 2: Start with Regular Expressions

Here’s a table that explains the second category (starts with) of regular expressions. The first column shows the expression, and the second explains its meaning.

sr.	Regular Expression	Simple Explanation
1	a(a+b)*	Starts with a, followed by any number (even zero) of as or bs in any order.
2	101*(0+1)*	Starts with 10, then zero or more repeats of 1, then zero or more mix of 0s and 1s.
3	bab(a+b)*	Starts with bab, followed by zero or any number of as or bs .
4	aa(aba+bab)*	Starts with aa, followed by zero or any number of the patterns aba or bab.
5	(a(bb)*)(a+b)*	Starts with a, then zero or more bbs, then zero or any number of as or bs in any order.
6	1(0+1)(00+11)*	Starts with 1, then either 0 or 1, then zero or more repeats of 00 or 11.
7	a+b+c(ab+bb+cc)*	One"a", One “b”, or starts with"cand then zero or more repeats of ab, bb, or cc patterns.
8	a+b+c+d(ab+bb+cc+dd)*	One"a", One “b”, One “c” or starts with"dand then zero or more repeats of ab, bb, cc, or dd patterns.
9	aba(a+b)* + bab(a+b)*	Either starts with aba or bab, followed by zero or any number of as or bs

Example 2.2: Regular Expression = 101*(0+1)*

Step 02: Possible strings, Language and DFA for RE = 101*(0+1)* are given in the following diagram

Example 2.3: Regular Expression = bab(a+b)*

Step 02: Possible strings, Language and DFA for RE = bab(a+b)* are given in the following diagram

Example 2.4: Regular Expression = aa(aba+bab)*

Step 02: Possible strings, Language and DFA for RE = aa(aba+bab)* are given in the following diagram

Example 2.5: Regular Expression = (a(bb)*)(a+b)*

Step 02: Possible strings, Language and DFA for RE = (a(bb)*)(a+b)* are given in the following diagram

Example 2.6: Regular Expression = 1(0+1)(00+11)*

Step 02: Possible strings, Language and DFA for RE = 1(0+1)(00+11)*  are given in the following diagram

Example 2.7: Regular Expression = a+b+c(ab+bb+cc)*

Step 02: Possible strings, Language and DFA for RE = a+b+c(ab+bb+cc)* are given in the following diagram

Example 2.8: Regular Expression = a+b+c+d(ab+bb+cc+dd)*

Step 02: Possible strings, Language and DFA for RE = a+b+c+d(ab+bb+cc+dd)* are given in the following diagram

Example 2.9: Regular Expression = aba(a+b)* + bab(a+b)*

Step 02: Possible strings, Language, and DFA for RE = aba(a+b)* + bab(a+b)*  are given in the following diagram



Category 3: End with Regular Expressions

These regular expressions describe patterns that match strings ending with specific sequences. Each one shows how a string can end after following certain rules or repetitions.

Sr.	Regular Expression	Simple Explanation
1	(a+b+c+d)*ab	Any mix of a, b, c, d (including empty), ending with ab.
2	(aaa+bbb)*ba	Repeats of aaa or bbb (or none), ending with ba.
3	(a+b+c)*abc	Any mix of a, b, or c (including empty), ending with abc.
4	(0+1)*101*	Any mix of 0s and 1s, followed by 10, and then any number of 1’s.
5	(a+b)*a(a+b)b	Any mix of a and b, then an aa or ab,and ending with b.
6	(00+11)*1(0+1)	Repeats of 00 or 11 (or none), followed by 1, and then either 0 or 1.

Example 3.1: Regular Expression = (a+b+c+d)*ab

Step 01:  Find the strings that can be derived from the given expression RE = (a+b+c+d)*ab. The following figure shows all possible strings that can be derived from RE = (a+b+c+d)*ab

Step 02: Possible strings, Language and DFA for RE = (a+b+c+d)*ab are given in the following diagram

Example 3.2: Regular Expression = (aaa+bbb)*ba

Step 01:  Find the strings that can be derived from the given expression RE = (aaa+bbb)*ba. The following figure shows all possible strings that can be derived from RE = (aaa+bbb)*ba

Step 02: Possible strings, Language and DFA for RE = (aaa+bbb)*ba are given in the following diagram

Example 3.3: Regular Expression = (a+b+c)*abc

Step 01:  Find the strings that can be derived from the given expression RE = (a+b+c)*abc. The following figure shows all possible strings that can be derived from RE = (a+b+c)*abc

Step 02: Possible strings, Language and DFA for RE = (a+b+c)*abc are given in the following diagram

Example 3.4: Regular Expression = (0+1)*101*

Step 01:  Find the strings that can be derived from the given expression RE = (0+1)*101*. The following figure shows all possible strings that can be derived from RE = (0+1)*101*

Step 02: Possible strings, Language and DFA for RE = (0+1)*101* are given in the following diagram

Example 3.5: Regular Expression = (a+b)*a(a+b)b

Step 01:  Find the strings that can be derived from the given expression RE = (a+b)*a(a+b)b. The following figure shows all possible strings that can be derived from RE = (a+b)*a(a+b)b

Step 02: Possible strings, Language and DFA for RE = (a+b)*a(a+b)b are given in the following diagram

Example 3.6: Regular Expression = (00+11)*1(0+1)

Step 01:  Find the strings that can be derived from the given expression RE = (00+11)*1(0+1). The following figure shows all possible strings that can be derived from RE = (00+11)*1(0+1)

Step 02: Possible strings, Language and DFA for RE = (00+11)*1(0+1) are given in the following diagram

Category 4: Start and End with Regular Expressions

These regular expressions describe patterns that match strings that start and end with specific sequences. Each one shows how a string can start and end after following certain rules or repetitions.

Example 4.1: Regular Expression = 1(1+0)*1 + 0(1+0)*0

Step 01:  Find the strings that can be derived from the given expression RE = 1(1+0)*1 + 0(1+0)*0. The following figure shows all possible strings that can be derived from RE = 1(1+0)*1 + 0(1+0)*0

Step 02: Possible strings, Language, and DFA for RE = 1(1+0)*1 + 0(1+0)*0 are given in the following diagram

Example 4.2: Regular Expression = 11(0+1)(00)

Step 01:  Find the strings that can be derived from the given expression RE = 11(0+1)(00). The following figure shows all possible strings that can be derived from RE = 11(0+1)(00)

Step 02: Possible strings, Language, and DFA for RE = 11(0+1)(00) are given in the following diagram

Example 4.3: Regular Expression = 00(11)*101

Step 01:  Find the strings that can be derived from the given expression RE =00(11)*101. The following figure shows all possible strings that can be derived from RE =00(11)*101

Step 02: Possible strings, Language, and DFA for RE =00(11)*101 are given in the following diagram

Example 4.4: Regular Expression = aba(aa+b)*ba

Step 01:  Find the strings that can be derived from the given expression RE = aba(aa+b)*ba. The following figure shows all possible strings that can be derived from RE = aba(aa+b)*ba

Step 02: Possible strings, Language, and DFA for RE = aba(aa+b)*ba are given in the following diagram

Example 4.5: Regular Expression = b*(aaa+bbb)*ba

Step 01:  Find the strings that can be derived from the given expression RE = b*(aaa+bbb)*ba. The following figure shows all possible strings that can be derived from RE = b*(aaa+bbb)*ba

Step 02: Possible strings, Language, and DFA for RE = b*(aaa+bbb)*ba are given in the following diagram

Example 4.6: Regular Expression = a(a+b)*ba+a

Step 01:  Find the strings that can be derived from the given expression RE = b*(aaa+bbb)*ba. The following figure shows all possible strings that can be derived from RE = a(a+b)*ba+a

Step 02: Possible strings, Language, and DFA for RE = a(a+b)*ba+a are given in the following diagram

Example 4.7: Regular Expression = 0+1(0+1)*10

Step 01:  Find the strings that can be derived from the given expression RE = 0+1(0+1)*10. The following figure shows all possible strings that can be derived from RE = 0+1(0+1)*10

Step 02: Possible strings, Language, and DFA for RE = 0+1(0+1)*10 are given in the following diagram

Example 4.8: Regular Expression = (11)*(0+1)(00)

Step 01:  Find the strings that can be derived from the given expression RE = (11)*(0+1)(00). The following figure shows all possible strings that can be derived from RE = (11)*(0+1)(00)

Step 02: Possible strings, Language, and DFA for RE = (11)*(0+1)(00) are given in the following diagram

Example 4.9: Regular Expression = (1)*(0+1)*(00)*

Step 01:  Find the strings that can be derived from the given expression RE = (1)*(0+1)*(00)*. The following figure shows all possible strings that can be derived from RE = (1)*(0+1)*(00)*

Step 02: Possible strings, Language, and DFA for RE = (1)*(0+1)*(00)* are given in the following diagram

Example 4.10: Regular Expression = 10(101+0+1)*1

Step 01:  Find the strings that can be derived from the given expression RE = 10(101+0+1)*1. The following figure shows all possible strings that can be derived from RE = 10(101+0+1)*1

Step 02: Possible strings, Language, and DFA for RE = 10(101+0+1)*1 are given in the following diagram

Example 4.11: Regular Expression = ac(a+b+c)*ba

Step 01:  Find the strings that can be derived from the given expression RE = ac(a+b+c)*ba. The following figure shows all possible strings that can be derived from RE = ac(a+b+c)*ba

Step 02: Possible strings, Language, and DFA for RE = ac(a+b+c)*ba are given in the following diagram

Example 4.12: Regular Expression = d(a+b+c)*bad

Step 01:  Find the strings that can be derived from the given expression RE = d(a+b+c)*bad. The following figure shows all possible strings that can be derived from RE = d(a+b+c)*bad

Step 02: Possible strings, Language, and DFA for RE = d(a+b+c)*bad are given in the following diagram

Example 4.13: Regular Expression = acd(a+b+c)*bad

Step 01:  Find the strings that can be derived from the given expression RE = acd(a+b+c)*bad . The following figure shows all possible strings that can be derived from RE = acd(a+b+c)*bad

Step 02: Possible strings, Language, and DFA for RE = acd(a+b+c)*bad are given in the following diagram

Example 4.14: Regular Expression = bb(a+b)*aa(aa+bb)

Step 01:  Find the strings that can be derived from the given expression RE = bb(a+b)*aa(aa+bb). The following figure shows all possible strings that can be derived from RE = bb(a+b)*aa(aa+bb)

Step 02: Possible strings, Language, and DFA for RE = bb(a+b)*aa(aa+bb) are given in the following diagram

Example 4.15: Regular Expression = (aa+bb)((aa)*+b)*ba

Step 01:  Find the strings that can be derived from the given expression RE = (aa+bb)((aa)*+b)*ba. The following figure shows all possible strings that can be derived from RE = (aa+bb)((aa)*+b)*ba

Step 02: Possible strings, Language, and DFA for RE = (aa+bb)((aa)*+b)*ba are given in the following diagram

Types of Regular Expressions in TOC

As we know, regular languages are either finite or infinite. So, Regular expressions can be written for both finite and infinite languages. So, types of Regular expressions are of two types

I. Finite Regular Expressions

Finite Regular expressions are used to represent the finite regular languages. So, the length of finite regular expressions is always limited.  Following are the various examples of finite regular expressions

Example 01: Write the regular expression for the language which has no string.

Solution: Language for the given example is given below

L = { } //empty string

Regular expression for the above language is given below

L(R) = Φ

Example 02: Write the regular expression for the language with a string with zero length.

Solution: Language for the given example is given below

L = { ε } //single string

Regular expression for the above language is given below

L(R) = ε

Example 03: Write the regular expression for the language with a string with a single length over ∑ = {a, b}.

Solution: Language for the given example is given below

L = { a,b } //string with single length

A regular expression for the above language is given below

L(R) = (a+b)

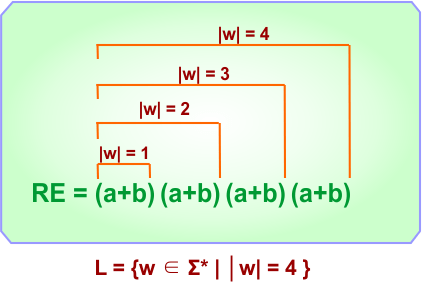

Example 04: Write the regular expression for the language with a string with the length of two over ∑ = {a, b}.

Solution: Language for the given example is given below

L =  (a,b).(a,b) = { aa,ab,ba,bb } //string with length of two

A regular expression for the above language is given below

L(R) = (aa+ab+ba+bb)

Example 05: Write the regular expression for the language with a string of three over ∑ = {a, b}.

Solution: Language for the given example is given below

L = (a,b).(a,b). (a,b) = { aaa,abb,aab,baa……..,bbb } //string with length of three

Regular expression for the above language is given below

L(R) = (aaa + abb + aab + baa+……..+ bbb)

Example 06: Write the regular expression for the language with strings with an at-most length of 2 over ∑ = {a, b}.

Solution: Language for the given example is given below

L = (ε,a,b).( ε,a,b) = { ε, a ,b, aa,ba……..,bb } // strings with at-most length of 2

Regular expression for the above language is given below

L(R) = (ε+a+b).( ε+a+b)

Example 07: Write the regular expression for the language with strings “Not More than two a’s and one b” over ∑ = {a, b}.

Solution: Language for the given example is given below

L = { ε, a ,b, aa,aba, aab…….. } // strings with Not More than two a’s and one b

Regular expression for the above language is given below

L(R) = { ε + a + b + aa +aba + aab+…….. }

Example 08: Write the regular expression for the finite language, which accepts all the strings, having the length exactly two over ∑ = {a, b}.

Solution: Language for the given example is given below

L = {aa, ab, ba, bb} // only 4 strings are possible for given condition

Regular expression for the above language is given below

L(R) = {aa + ab +ba+bb}

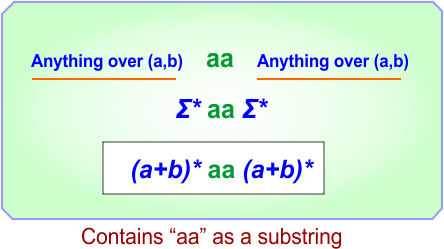

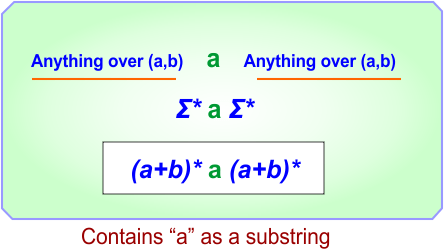

II. Infinite Regular Expressions

Infinite regular expressions are used to represent the infinite regular languages. So, the length of infinite regular expressions is always unlimited. Let explain various examples

Example 01: Write the regular expression for the language that accepts all the strings having all combinations of a’s over ∑ = {a}.

Solution: Language for the given example is given below

L = { ε, a, aa, aaa, aaaa, aaaaa, ……….. }

A regular expression for the above language is given below

L(R) = a*

Example 02: Write the regular expression for the language that accepts all the strings having all combinations of a’s except the null string over ∑ = {a}.

Solution: Language for the given example is given below

L = {a, aa, aaa, aaaa, aaaaa, ……….. }

A regular expression for the above language is given below

L(R) = a⁺

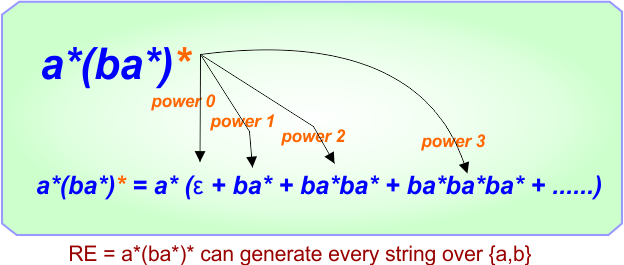

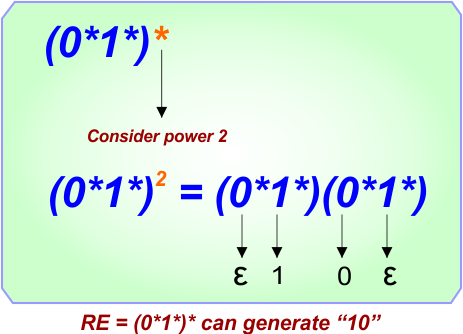

Example 03: Write the regular expression for the language that accepts all the strings, which has any number of a’s and b’s over ∑ = {a, b}.

Solution: Language for the given example is given below

L = {a, b, ab, ba, aab, aba, aaba ……….. }

Regular expression for the above language is given below

L(R) = (a+b)*

Example 04: Write the regular expression for the language that accepts all the strings, having only one “b” and any numbers of “a” over ∑ = {a, b}.

Solution: Language for the given example is given below

L = {b, ab, aba, abaa, abaaaa, aaaaabaaaaaaa……….. } // all strings having only one “b”

Regular expression for the above language is given below

L(R) = a*ba*

Example 05: Write the regular expression for the language that accepts all the strings, which are starting with 1 and ending with 0, over ∑ = {0, 1}.

Solution: The language for the given example is given below

L = {10, 100, 11010, 1110, 1111000, ……….. } // starting with 1 and ending with 0

Regular expression for the above language is given below

L(R) = 1(0+1)*0

Example 06: Write the regular expression for the language that accepts all the strings having even length, over ∑ = {0}.

Solution: Language for the given example is given below

L = { ε, 00, 0000, 000000, 00000000, ……….. }

Regular expression for the above language is given below

L(R) = (00)*

Example 07:Write the regular expression for the language which accepts all the strings, having the first symbol should be “b” and the last symbol should be “a” over ∑ = {a, b}.

Solution: Language for given example is given below

L = {ba, baa, baba, bbaa, baaaa, babbbba……….. } // unlimited strings are possible for given condition

Regular expression for above language is given below

L(R) = b (a+b)* a

Operations on Regular Languages in Automata

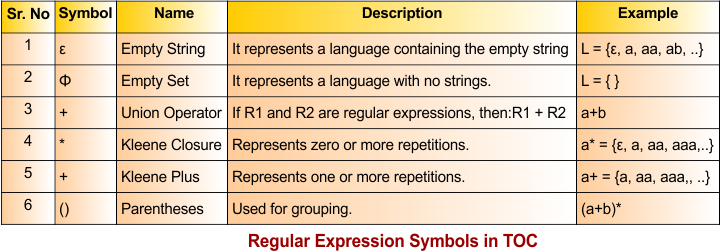

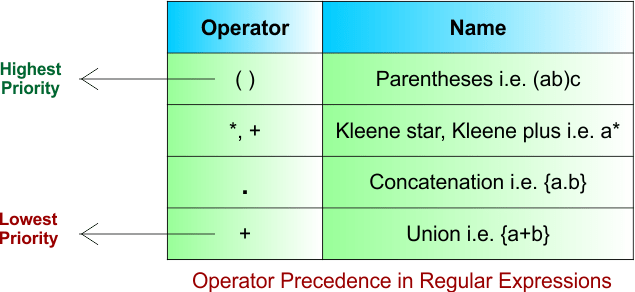

There may be various operations in regular languages. Let “R” be a Regular expression over the alphabet Sigma if R is

1. If regular expression (R) is equal to Epsilon (ε), then the language of Regular expression (R) will represent the epsilon set, i.e. { ε}. A mathematical equation is given below,

2. If regular expression (R) is equal to Φ, then the language of Regular expression (R) will represent the empty set, i.e. { }. The mathematical equation is given below,

3. If regular expression (R) is equal to an input symbol “a,” which belongs to sigma, then the language of Regular expression (R) will represent the set which has “a” alphabet, i.e. {a}. A mathematical equation is given below,

4. The union of two Two Regular Expressions will always produce a regular language. Suppose R1 and R2 are two regular expressions. IF R1= a, R2=b then R1 U R2 =a+b So L(R1 U R2) = {a,b}, still string “a,b” is a regular language.

Hence, the above equation shows that {a,b} is also a regular language.

Note: The intersection of two Two Regular Expressions will always produce a regular language.

5. Concatenation of two Two Regular Expressions will always produce a regular language. IF R1= a, R2=b then R1.R2 =a.b So L(R1.R2) = {ab}, still string “ab” is a regular language

Hence, the above equation shows {ab} is also a regular language.

6. Kleene closure of Regular Expression (RE) is also a regular language

If R1 = x and (R1)* is still a regular language

• In a regular expression, x* means zero or more occurrences of x. It can generate { ε, x, xx, xxx, xxxx, …..}
• In a regular expression, x⁺means one or more occurrence of x. It can generate {x, xx, xxx, xxxx, …..}

7. If R is regular, (R) is also a regular language

Note: Only the above mentioned 7 rules are used for regular expressions. By the combination of above 7-rules more regular Expressions can be created.
