Heap Sort with Example – Time Complexity

Heap Sort is a comparison-based sorting algorithm that converts an array into a heap data structure and repeatedly extracts the largest (or smallest) element to sort the array.

  • It uses a heap data structure
  • Efficient for large datasets
  • Not stable (does not maintain the relative order of equal elements)
  • In-place sorting (does not require extra memory)

Heap Sort consists of two steps, The Heap Sort Working Mechanism is given below

Step 01: Build Heap

This converts the array into a Max Heap (or Min Heap for ascending order).

Build Heap Tree (One by One elements Insertion 30, 40, 20, 50, 10, 70, 25)



Step 02: Delete Elements and Heapify

Repeatedly removes the maximum element (root), swaps it with the last element, and re-heapifies to maintain the heap property. Follwoing diagrams explain the concept in more detail.

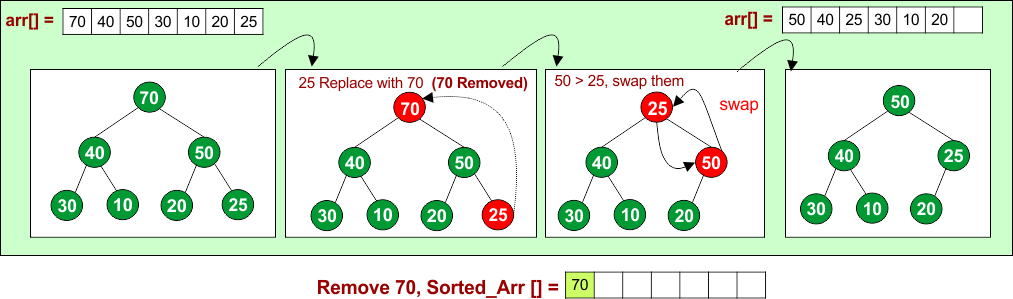

Remove 70:

Delete Elements and Heapify - Remove 70

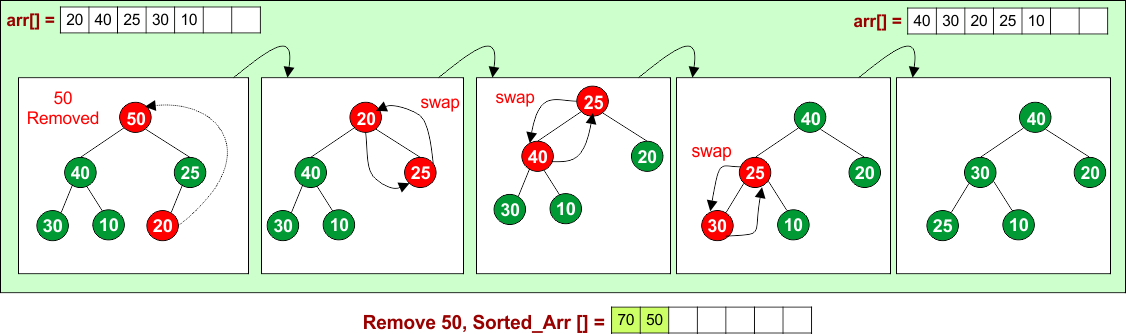

Remove 50:

Delete Elements and Heapify - Remove 50

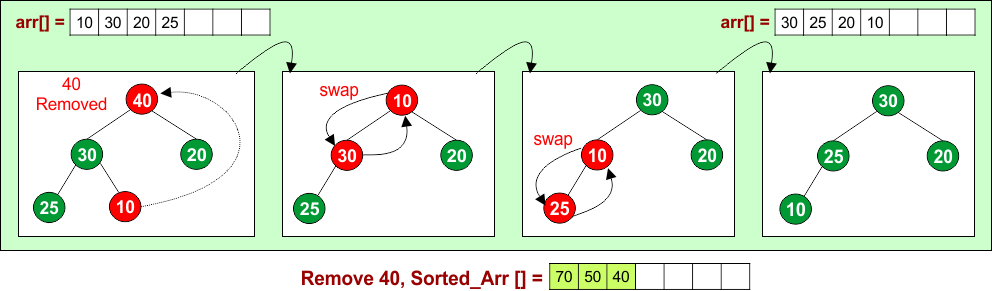

Remove 40:

Delete Elements and Heapify - Remove 40

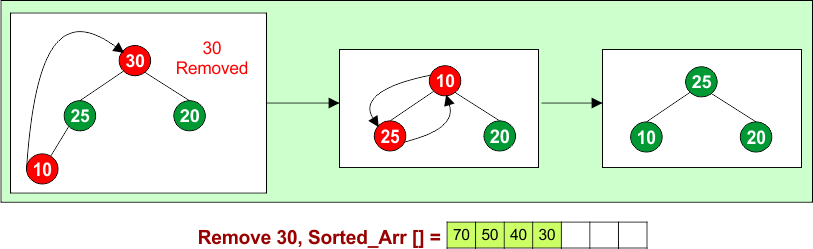

Remove 30:

Delete Elements and Heapify - Remove 30

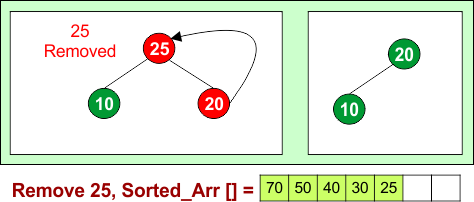

Remove 25:

Delete Elements and Heapify - Remove 25

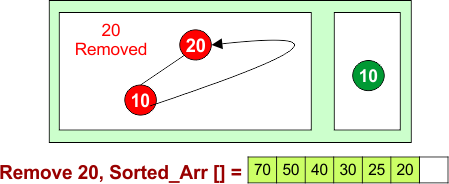

Remove 20:

Delete Elements and Heapify - Remove 20

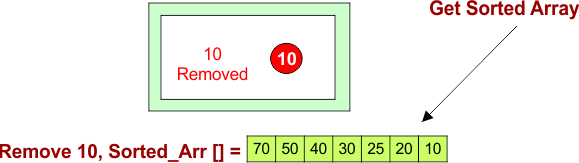

Remove 10:

Delete Elements and Heapify - Remove 10

Finally, we get sorted Array, after completing two steps

Time Complexity Calculation

Heap Sort has a consistent time complexity of O(n log n) in best and worst case. Calculations are given in the following table.

Step Complexity
Building Heap O(n)
Delete Root & Heapify O(n log n)
Total Complexity O(n + n log n) = O(n log n)
